Product Specs:
Condition: New
Product Code: STG499
Model: BTA8526TA3
Size: 8′ 6″ x 26′
RPM Trailer Sales is the leading designer of mobile stage trailers. We offer many great options for customizing your traveling show. Our trailers can come fully customizable for entertaining clients and customers for any of you mobile needs. Our custom design team is perfect for your mobile theater trailer, mobile bar, and any other needs for a mobile stage trailer. Each of our stages is crafted for a wide range of uses and specific sets of needs. A Mobile Stage trailer designed by RPM Trailer sales is the best solution for a cost effective, quick and easy set-up for outdoor events. We guarantee extraordinary versatility with a wide array of unique style and features. And our dedicated staff will give you all the attention, knowledge and support that you deserve. Mobile stage trailers for sale online at www.rpmtrailersales.com.
26’ Custom inTech Aluminum Stage Trailer detailed specification
GVWR: 10,000 lbs.
Width: 8.50
Height: 8’ 6”
Axle Type: Tandem 5,200 lb. Dexter Torsion Axles
Model: BTA8526TA3
Product Code: STG499
See Detailed Specifications
Chassis
Full Perimeter Aluminum Frame
All-Tube Construction
Dexter Torsion Axles
Electric Brakes-All Axles
Breakaway Battery Kit
7-Way Trailer Plug
2 5/16” Ball Coupler
Safety Chains w/Storage Loop
2000# Side Crank Manual Jack
16” O/C Floor Crossmembers
16” O/C Wall Studs
16” O/C Roof Studs
Smooth Aluminum Wheel Boxes
ST225/75R15 Nitro Filled Tires w/Steel Wheels
Interior
One Piece Aluminum Subfloor Vapor Barrier
¾” Plywood Subfloor
2) Dome Lights
12V Power Roof Vent
6.5’ Standard Interior Height
4) 5000# Recessed D-Rings
4’ Beavertail
Exterior
Screwless Aluminum Exterior
One Piece Aluminum Roof
Arched Walk on Trussed Roof System
3” Upper and Lower Rub Rail
LED Premium Clearance Light
LED Slimline Tail Lights
24” ATP Stoneguard
36” 405 Series Entrance Door
FMVSS Premium Entrance Door Latch
Color Matched Front Verticals
Rear Ramp Door w/ Gapless Hinge
Aluminum Bar Locks
Selected Options:
Upgrade to 4’ Wedge Nose
50 Amp Gen Prep w/ Transfer Switch
Insulated Generator Compartment
Generator Slides for Portable Gen
Upgrade to .050 Exterior Aluminum Skin/Ft
18” Additional Height
Rear Caster Wheels-Pair
12V Battery w/ Vented Box and Disconnect Switch
13,500 BTU A/C
Upgrade to Digital Wall Mount Thermostat for A/C
Upgrade to Black Coin Flooring/Ft Includes Main Floor & Side Stage Floor
Upgrade to Black Coin Rubber Ramp
24’ Airline Track-Recessed
Slide Out Aluminum Step

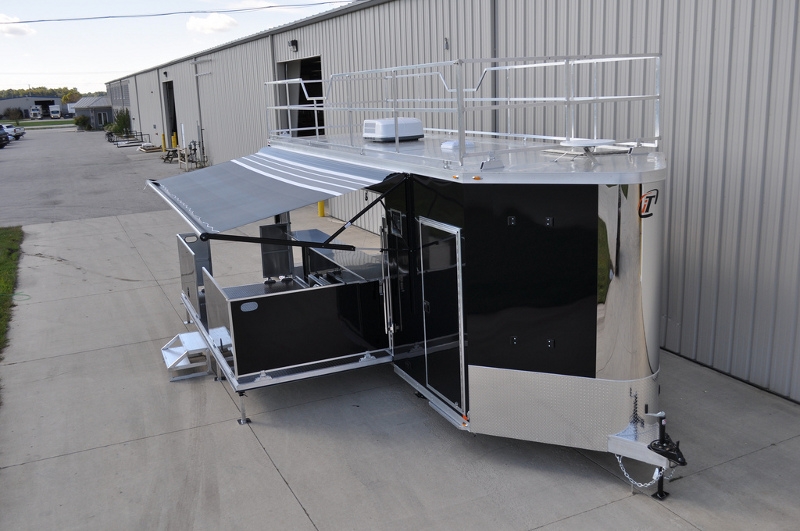

21’ Dometic 12V Power Awning w/ Weathershield
Rear Stabilizer Jacks-Pair-5000# Crank Down
Front Stabilizer Jacks-Pair-5000# Crank Down
Upgrade to Aluminum Wheels-ST225/75R15
In Floor Spare Tire Compartment
Spare ST225/75R15 on Steel Wheel

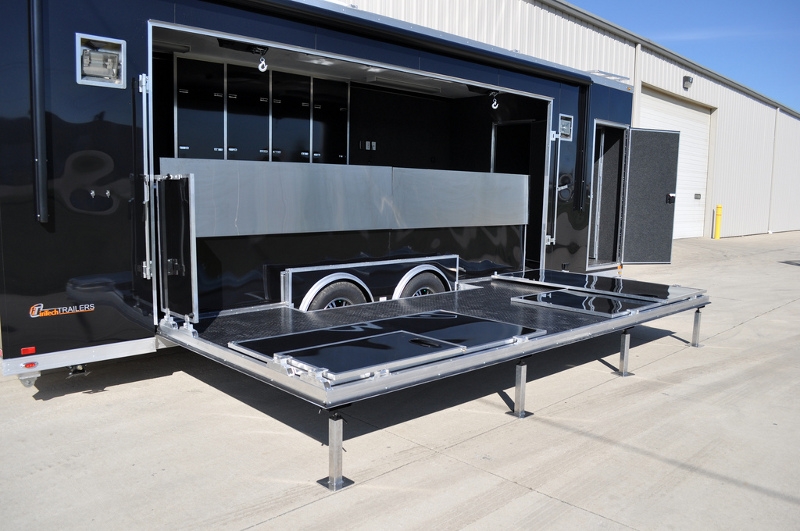

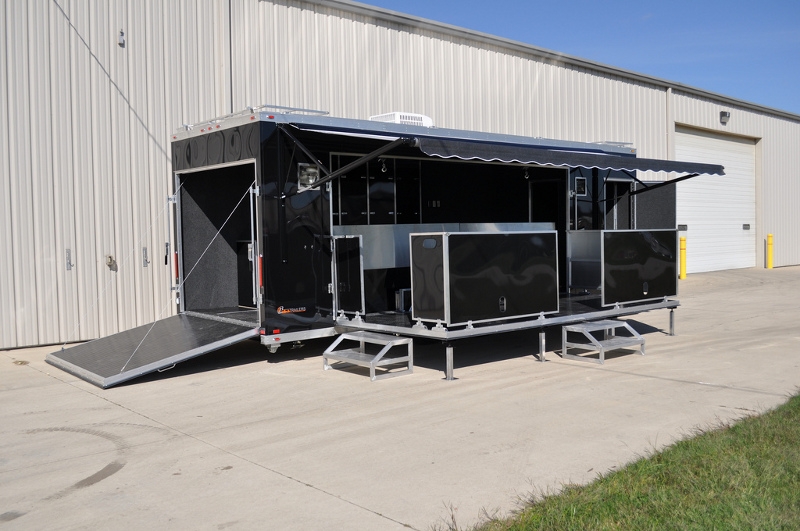

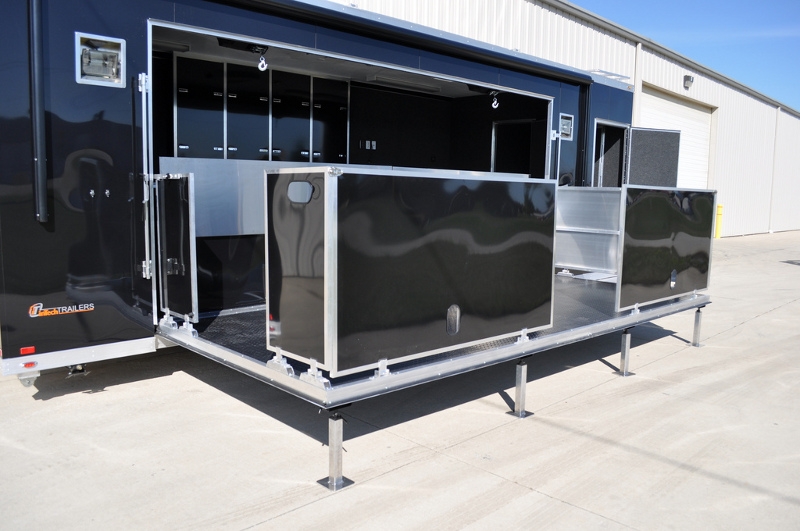

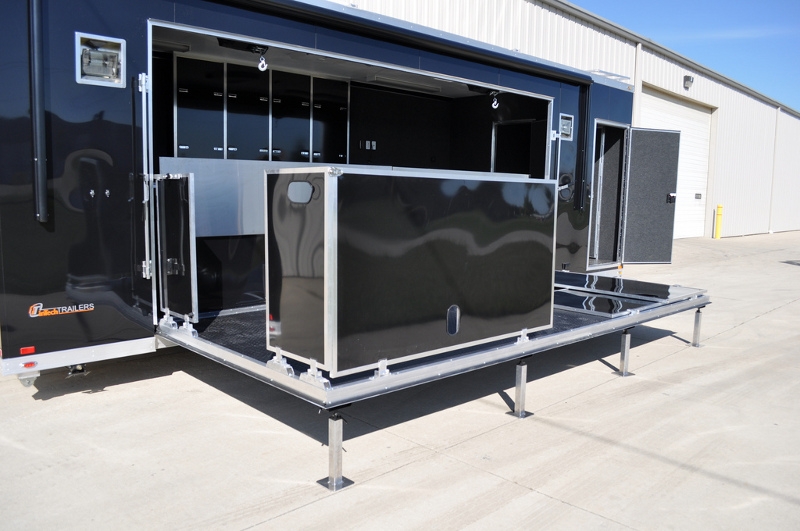

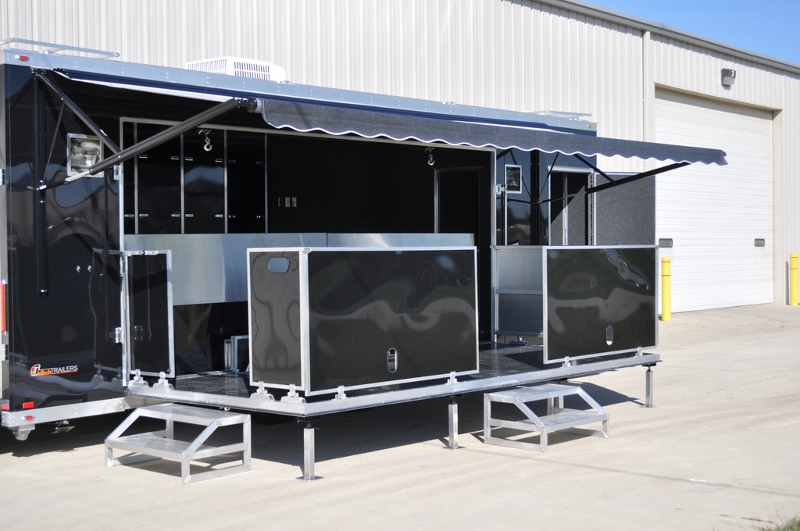

16’ Side Stage Door-Does Not Include Legs, Railing, Winch, or Spring Assist
Dual 4000# Winches to Side Stage Door-Batteries Not Included
4) Stage Leg to Stage Door or Rear Ramp Door- Each
2) Standalone Step for Stage
Roof Escape Hatch w/ Interior Ladder
Add 50 Amp Electrical Service Package
34” High Carpet on Interior Walls
White Vinyl Ceiling
Upgrade to Party Walk-On Roof
120V 48” Fluorescent Light-Recessed If Possible
3) Additional 12V Dome Light
36”x 24” 405 Series Top Hinged Baggage Door
2) Partition Wall-Welded Aluminum Tube w/ 28” Swinging Door
10) 120V 15A Recept-GFI Protected Where Required

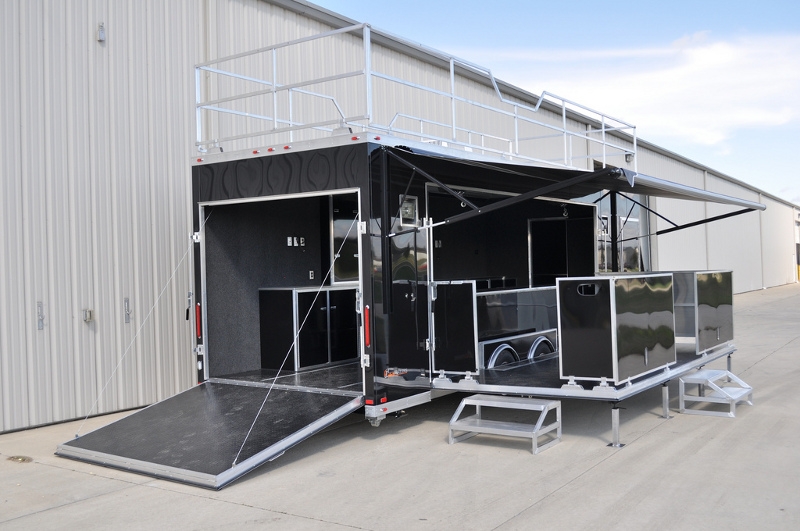

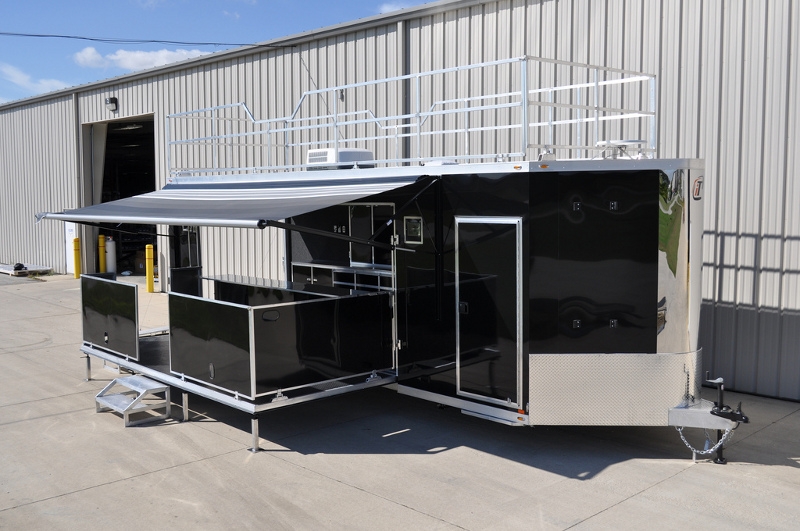

24’ Roof Mounted Viewing Rail w/ Aluminum Face
16) Roof Mounted Viewing Rail

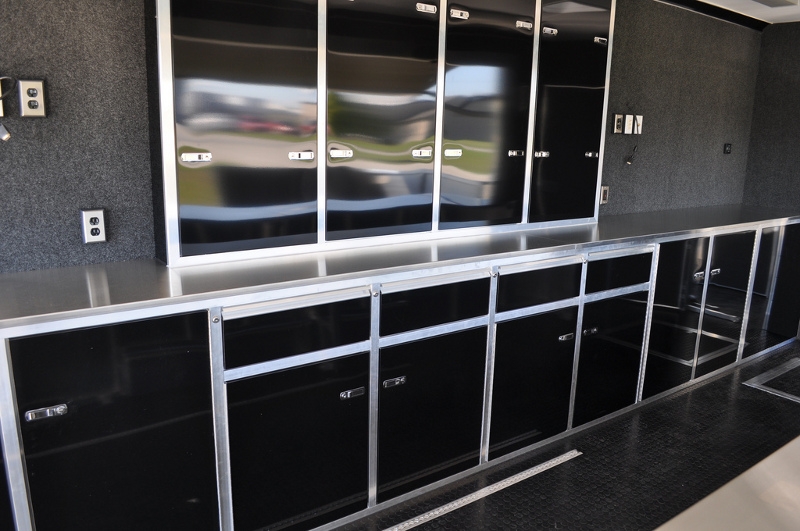

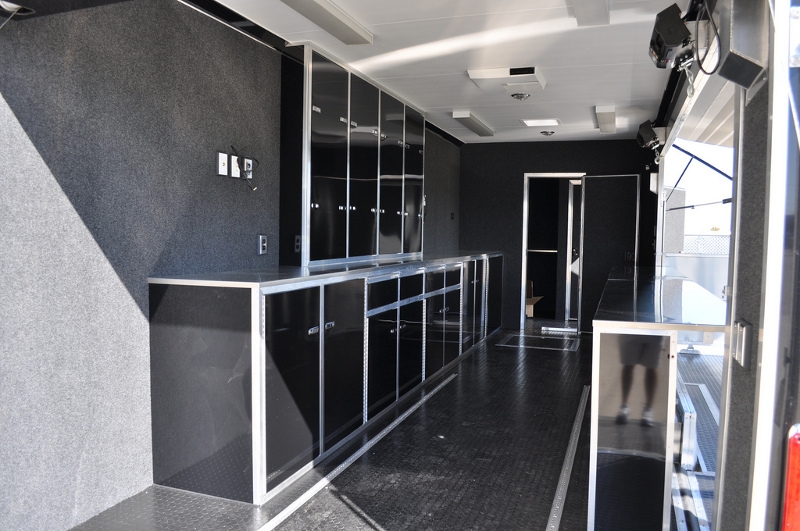

16’ Premium Lower Aluminum Cabinet
Add 4 Single Drawer into Lower Cabinet
1) Custom Full Height Upper Cabinet w/Lift Off Doors
16’ Removable Railing w/ Folding Countertop
2) 120V 500W Quartz Halogen Light
Wedge Cabinet-Fixed to Wall
Custom TV Prep Package
2) Removable Ladder Brackets
Upgrade to 8” Tall Cabinet Drawers
This trailer is available for ordering with the same features or designed for your exact specifications.
