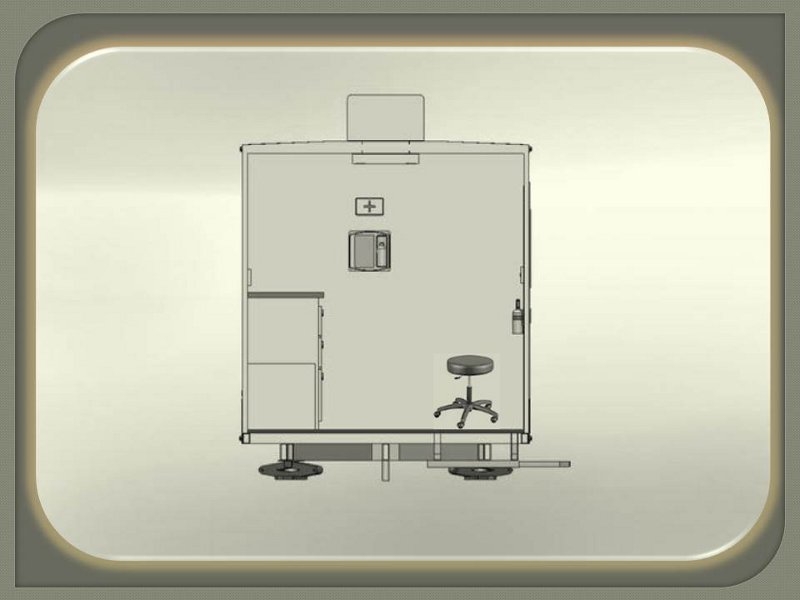

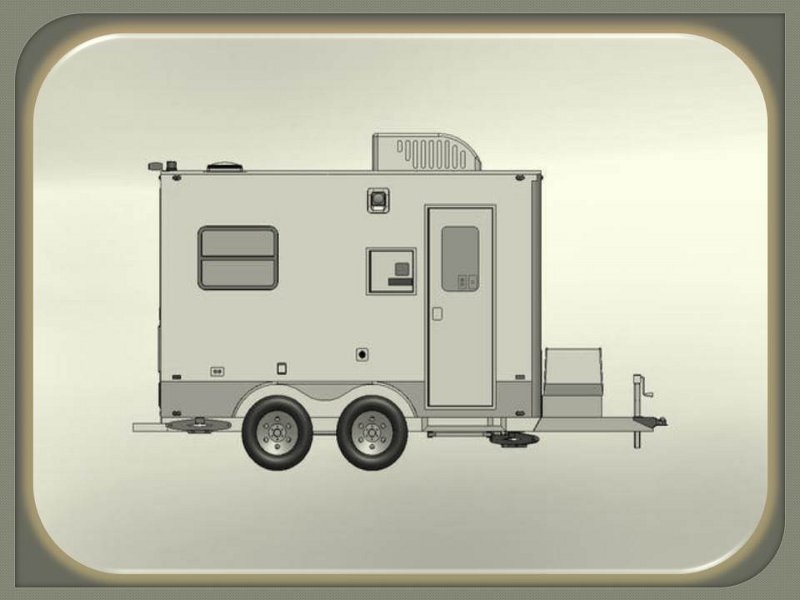

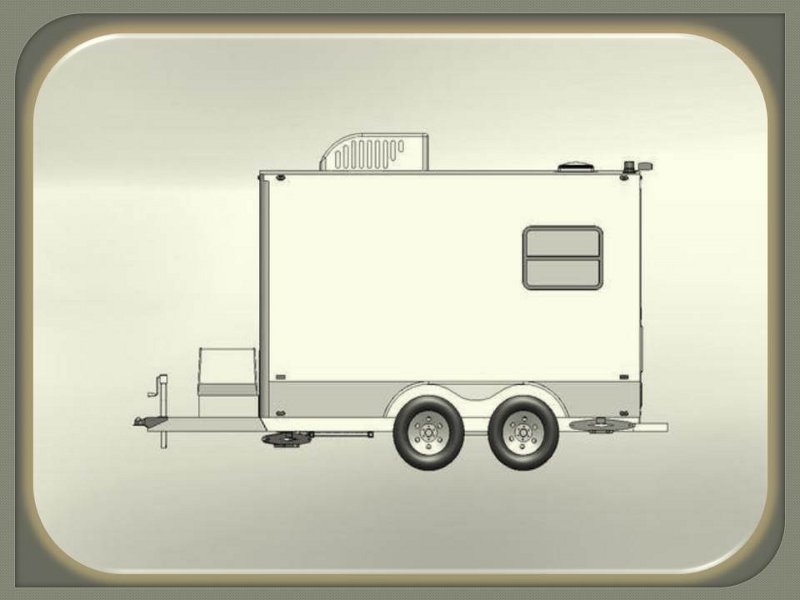

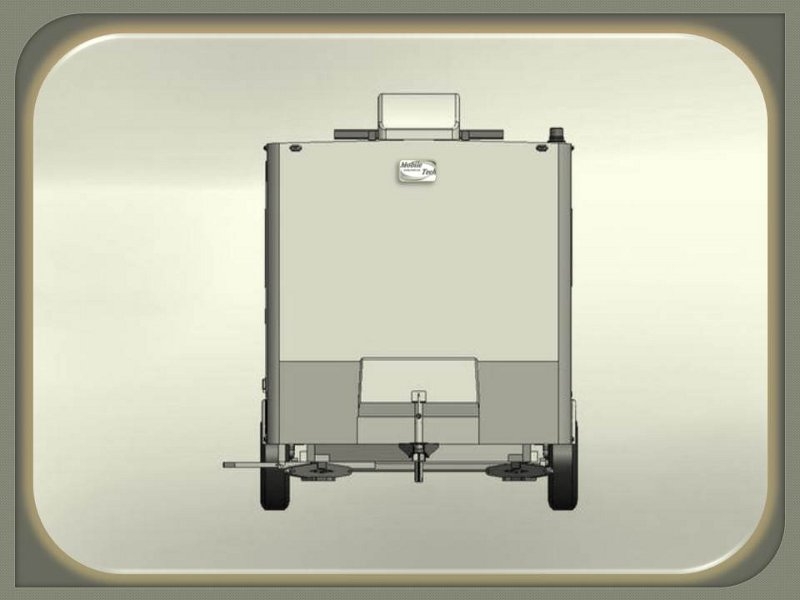

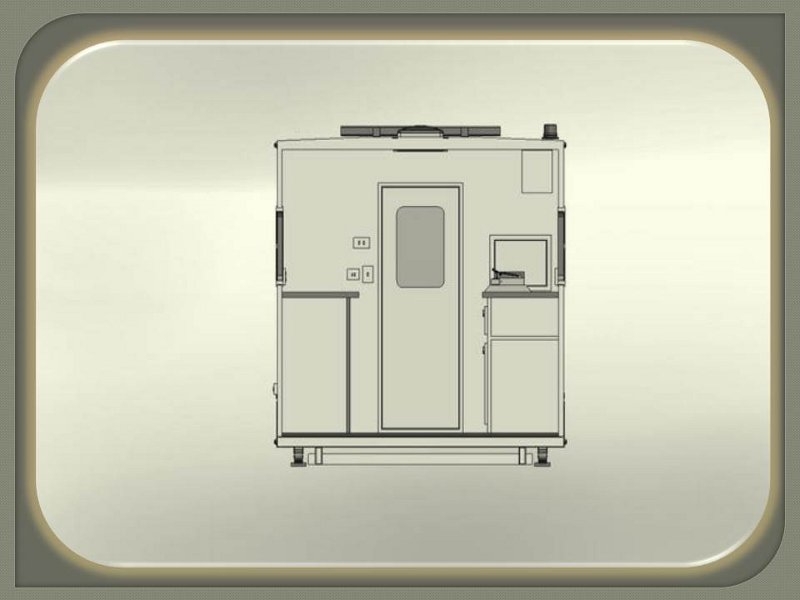

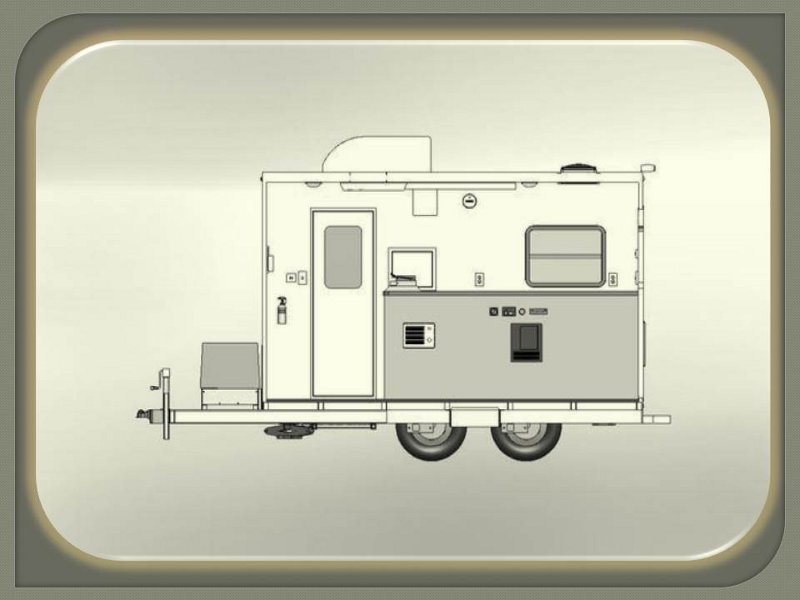

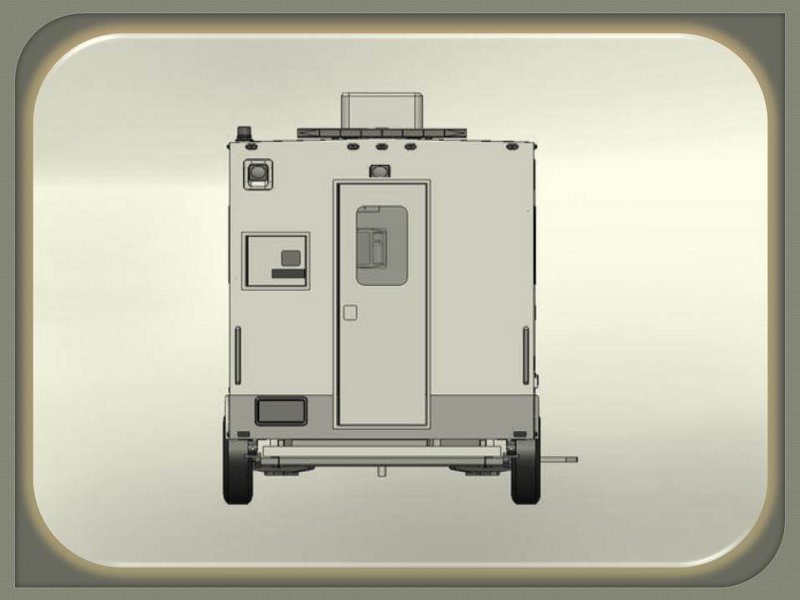

RPM Trailer Sales offers Fiber Optic Splicing trailers that provides the most durable, self-sufficient and comfortable mobile work environment on the market. We can customize these to fit your specific needs. Take a look at the CAD images and see if this layout works better for you than some of our other units.
Perfect for medium size crews, our 7 x 12 is easy to tow and get into tight jobsites but still has plenty of room for your crew to move around inside without stepping on each other. Take a look at the features of this 7 x 12 tandem axle splicing trailer that has a very efficient design that gets the job done! We know that functionality and comfort are important to a technician’s productivity. Our Fiber Optic Splicing Trailers are designed to optimize the work space and are built to last.
Model: FOST7x12TA2
Stock Number: FT7x12
See Detailed Specifications
Chassis:
Full Aluminum Frame
Dexter Torsion Axles
Electric Brakes-All Axles
Breakaway Battery Kit
ST205/75R15 Nitro Filled Tires w/ Steel Wheels
7-Way Trailer Plug
2 5/16” Ball Coupler
Safety Chains & Hooks
5000# Manual Jack
Electrical:
5.5KW Onan Commercial Gas Generator
Remote Gen Start/Hour Meter
20 Gallon Fuel Tank w/ Gauge
Automatic Transfer Switch
50 Amp Load Center
12V Battery Cut-Off Switch
30’ Motorbase Shore Cord
Interior:
White Vinyl Walls & Ceiling
Tuff Ply Rubber Diamond Plate Flooring
Road Side Cabinets
Curb Side Cabinets
(2) Cable Access Doors w/ Brushes
(2) Cable Clamps
(2) 30”x 22” Tinted Slider Windows
13,500 BTU Air Conditioner
5,200 BTU Electric Wall Heater
12V Power Roof Vent
Carbon Monoxide Detector
(2) 12V Dome Lights
(2) 48” Fluorescent Lights
(5) 12V Interior Outlets
(1)12V Interior Outlet
First Aid Kit
Eye Wash Station
Fire Extinguisher
Exterior:
White FRP Sidewalls
One Piece Aluminum Roof
Front Vertical Corners
LED Clearance Lights
LED Slimline Tail Lights
24” ATP Front Stoneguard
12’ ATP Side Trim
2) 24” Entrance Doors
Aluminum Slideout Step
Rear Step Bumper System
Front & Rear Stabilizer Jacks
Exterior 120V GFI Outlet
Lighted Directional Arrow Board
Roof Mounted LED Strobe Light
(2) Quartz Flood Lights
A few additional options you may want:
Spare ST205/75R15 on Steel Wheel w/ Exterior Front Wall Mount
Add 12V AM/FM/CD Stereo w/ Four Interior Speakers
Upgrade to Adjustable Height Interchangeable Coupler
