Product Specs:
Condition: New
Product Code: 12630
Model: BGA8548TTA5
Size: 8′ 6″ x 48′

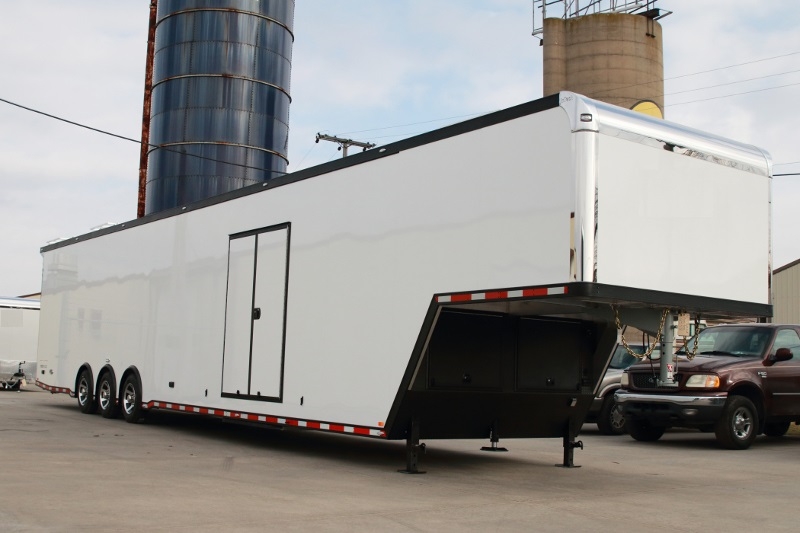

Distinct customization for the ultimate 48’ aluminum gooseneck race trailer. This 48’ race car hauler is set up to transport your car or toys in luxury style. The fully anodized exterior aluminum trim package not only accents the trailer beautifully, but also protects the aluminum for a lifetime against any kind of corrosion. The top and bottom trim feature a rivetless installation, with no exposed fasteners, giving this trailer an ultra-clean appearance. The Black AC cover complements the anodized trim package, and our popular rear spoiler design makes this custom trailer the envy at the track. Now if you thought the outside was amazing you have to check out the inside..
We design our aluminum trailers with an emphasis on the quality put into each custom trailer built. RPM Trailer Sales custom aluminum race trailers, not only look good but tow and out preform all others in its class! While designing, we strive to build the best, most versatile trailers available for your specific needs. RPM Trailers has become and will continue to be an industry leader. When you open the 60” Double side doors on this beast, you will not be disappointed. This 48’ car trailer is loaded with 50 amp electrical, 10KW Onan Diesel Generator Package, Custom Cabinets, and did we mention the full walk on roof with observation deck!
We are proud to say that RPM Trailer Sales has grown into one of the largest and most respected aluminum trailer dealers worldwide. RPM Trailer Sales always strives to find new ways to make our custom trailer designs exceed your expectations. We never get tired of designing the absolute finest custom trailers in today’s market place! When you’re ready to take the next step for a custom aluminum trailer….. look no further than RPM Trailer Sales. We’re certain you’ll be impressed with our unmatched quality, fit, and finish and you will surely see and experience the attention to detail & tow-ability…and even more impressed by just how affordable an all-aluminum Trailer really is! Experience a custom trailer with RPM Trailer Sales “Often Imitated – Never Duplicated” Contact us today at 706-654-2882 for details and a custom quote.
Building awesomeness one trailer at a time….
GVWR: 24,000 lbs.
Shipping Weight: 11,460 lbs.
Interior Height: 8’
Axle Type: Triple 8,000 lb. Dexter Torsion Axles
Model: BGA8548TTA5
Product Number: 12630
See Detailed Specifications
Check out this 48’ Custom Aluminum Race Car Hauler specifications here:
Construction & Standard Option Include:
Chassis
Full Perimeter Aluminum Frame
All Tube Construction
Dexter Torsion Axles
Electric Brakes – All Axles
Breakaway Battery Kit
7-Way Trailer Plug
2 5/16″ Adjustable GN Coupler
Safety Chains w/ Storage Loop
Dual Leg Manual Landing Gear
16″ O/C Floor Crossmembers
16″ O/C Wall Studs
16″ O/C Roof Studs
Smooth Aluminum Wheel Boxes – Spread Axle Design w/ Individual Fenderettes
LT215/75R17.5 Nitro Filled Tires w/ Steel Wheels
Interior
One Piece Aluminum Subfloor Vapor Barrier
3/4″ Plywood Subfloor
3) 12V LED Dome Lights w/ Switch
1) 12V Power Roof Vent
7′ Standard Interior Height
4) 5000# Recessed D-Rings
4′ Beavertail
Exterior
.030 Aluminum Skin – Screwless/Rivetless Aluminum Exterior
One Piece Aluminum Roof
Arched & Trussed Walk-On Service Roof
3″ Upper and Lower Rub Rail
LED Premium Clearance Lights
LED Slimline Tail Lights

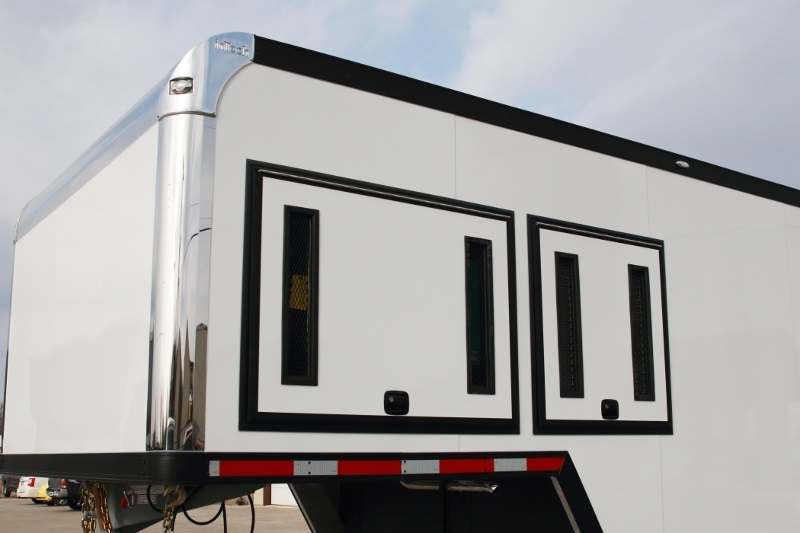

ATP Enclosed Riser w/ (2) Storage Doors
36″ 405 Series Entrance Door
FMVSS Premium Entrance Door Latch
Color Matched Front Verticals
Rear Ramp Door w/ Gapless Continuous Hinge
Aluminum Bar Locks
Rear Ramp Door
Rear Skid Plates
Additional Added & Selected Options:
48′ iCon Package:
iCon Exterior Upgrades:
Upgrade to 48″ 405 Series Door
FMVSS Side Door Lock
Aluminum Slide Out Step
Upgrade to Aluminum Wheels
Upgrade to .040 Exterior Aluminum Skin
Upgrade to Cast Corners w/ Stainless Steel Verticals & Radius
Stainless Steel Rear Header & Posts
Upgrade to 4″ Upper & Lower Side Trim
Upgrade to Stainless Steel Paddle Latches
40″ x 36″ 405 Series Generator Door
Awning Rail
iCon Electrical Upgrades:
50 Amp Electrical Service
50 Amp Gen Prep w/ Transfer Switch
Motorbase Plug & 25′ Shore Cord
12V Battery & Box Wired
Battery Shelf in Riser Compartment
12V Fuse Panel
60 Amp Converter for 12V
3) 15 Amp Interior Recepts
1) 15 Amp Exterior Recept
4) 48″ Fluorescent Lights – Recessed
3 Way Light Switch for Fluorescent Lights
2) 120V 500 Watt Quartz Halogen Lights
12V Cutoff Switch
Upgrade to Panel Lite Exterior Lights
Upgrade to Dual Brake Lights
iCon Interior Upgrades:
Screwless Aluminum Walls & Ceiling
Add Roof Vent w/ Wire for Future AC
Extruded Aluminum Floor

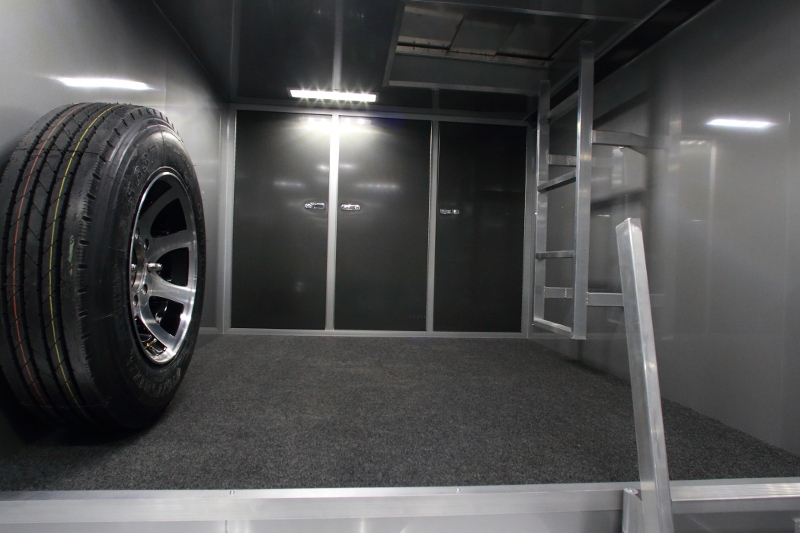

Gray Carpet in Riser Area
Extruded Aluminum Ramp
One Piece Aluminum Transition Flap

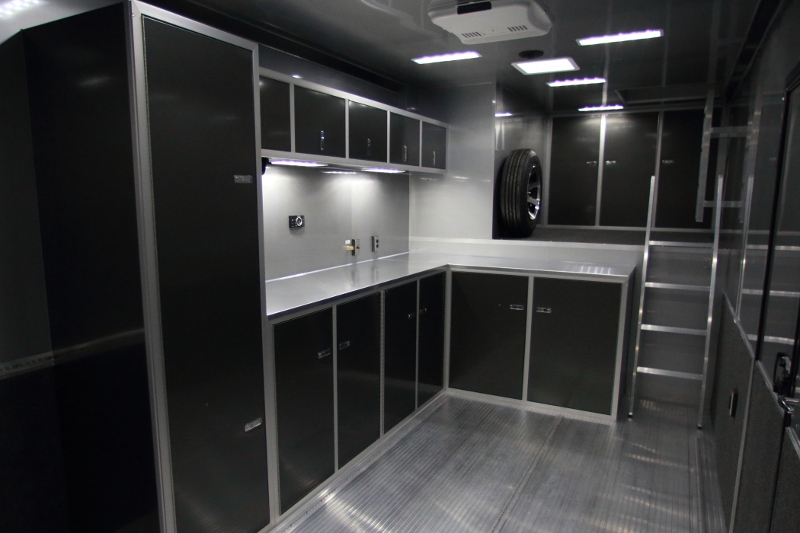

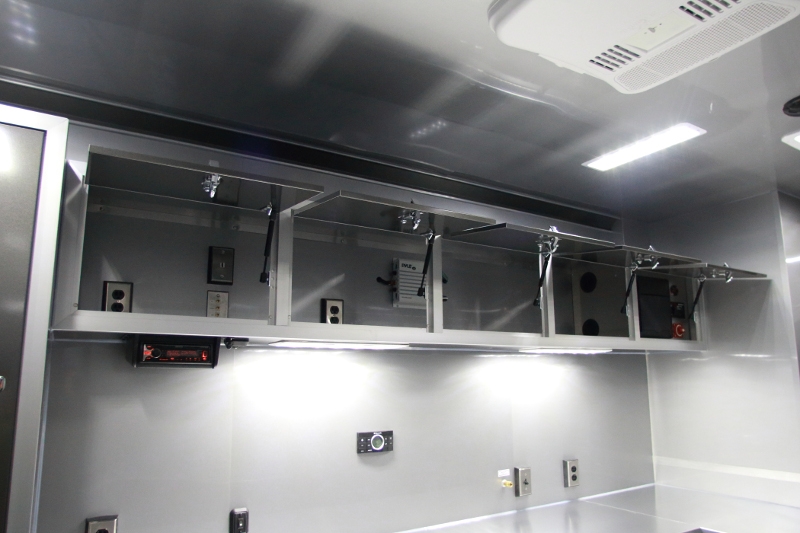

8′ Premium Aluminum Upper Cabinet

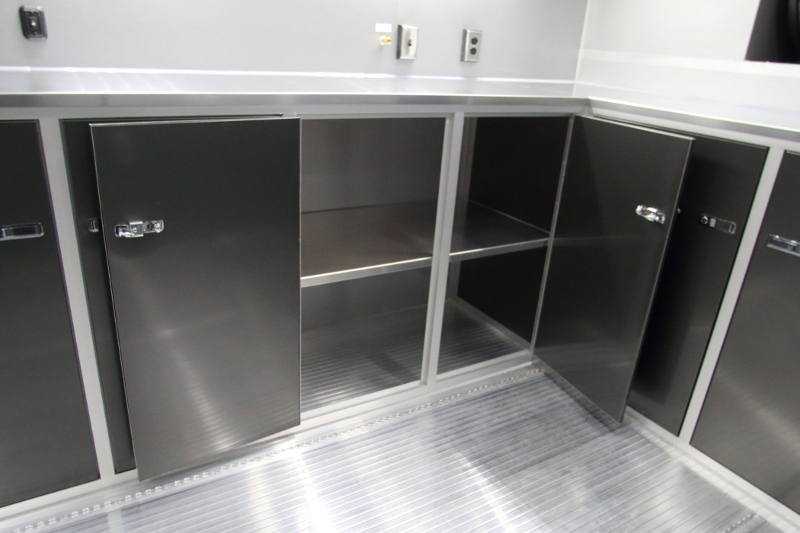

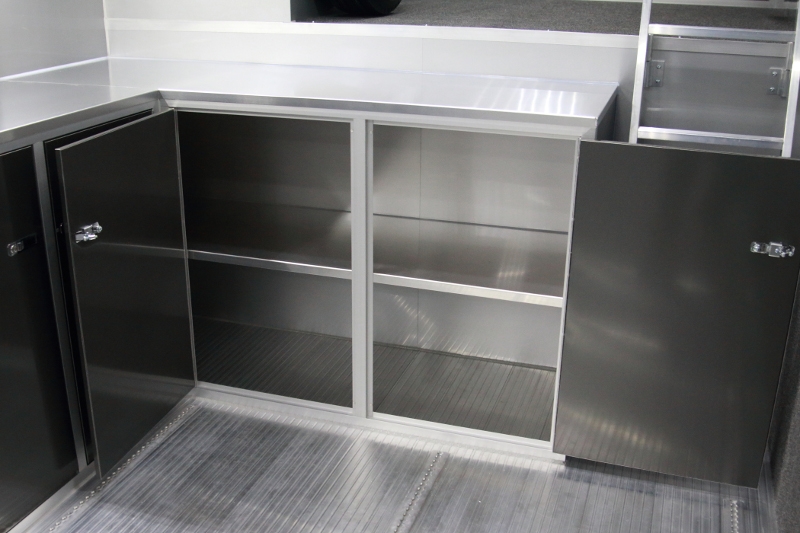

8′ Premium Aluminum L Shaped Lower Cabinet
LED Light Under Upper Cabinet
Gen Compartment in L Cabinet
More additional custom selected options added:
Delete 500W Quartz Light
Upgrade iCon Gen Box Location to Stand Alone in Riser
34″ x 36″ Top Hinge Gen Door to be used for Air Compressor
Upgrade to .050 Exterior Aluminum Skin from .040
Upgrade 4) 48″ Fluorescent Lights to 18″ 12V LED Lights
Upgrade to Heavy Duty Walk on Roof
12″ Additional Height

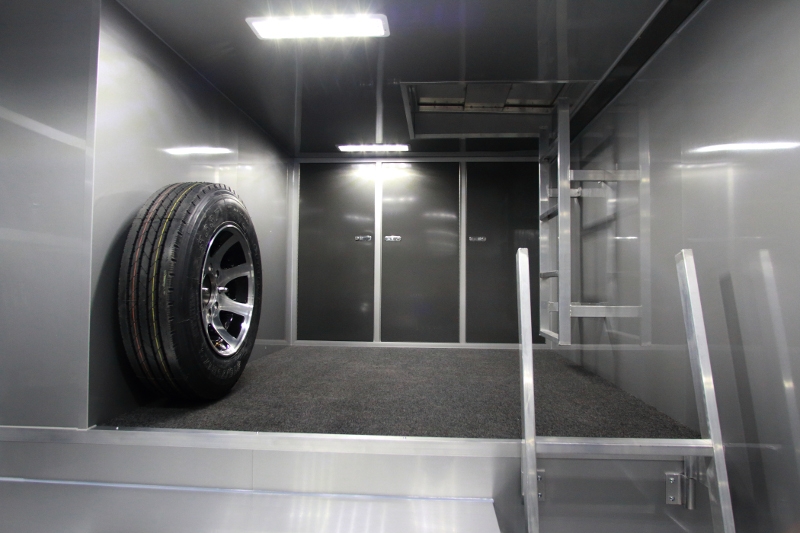

Removable Ladder for Access to Bunk

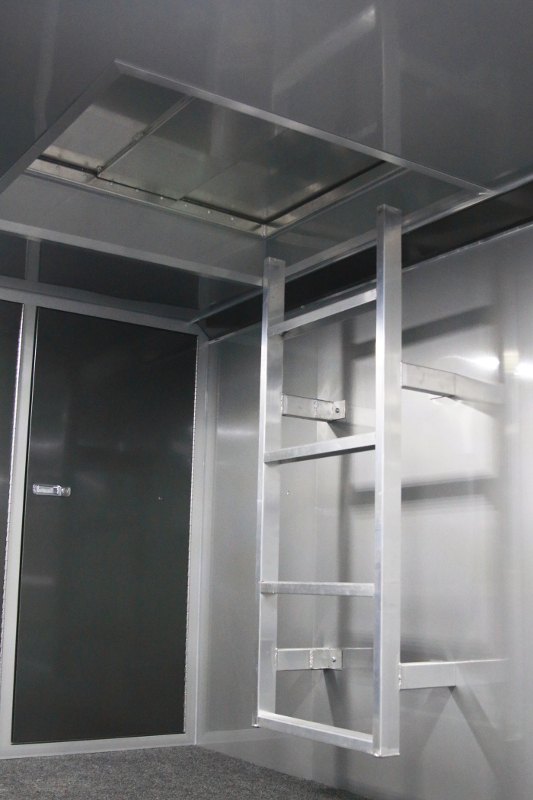

30″ x 30″ Roof Escape Hatch w/ Interior Ladder
40 feet Roof Mounted Viewing Rails / Observation Deck
Rear Caster Wheels – Pair
Upgrade to Single Post Hydraulic Jack
Spare LT215/75R17.5 on Aluminum Wheel
Spare Tire Wall Mount

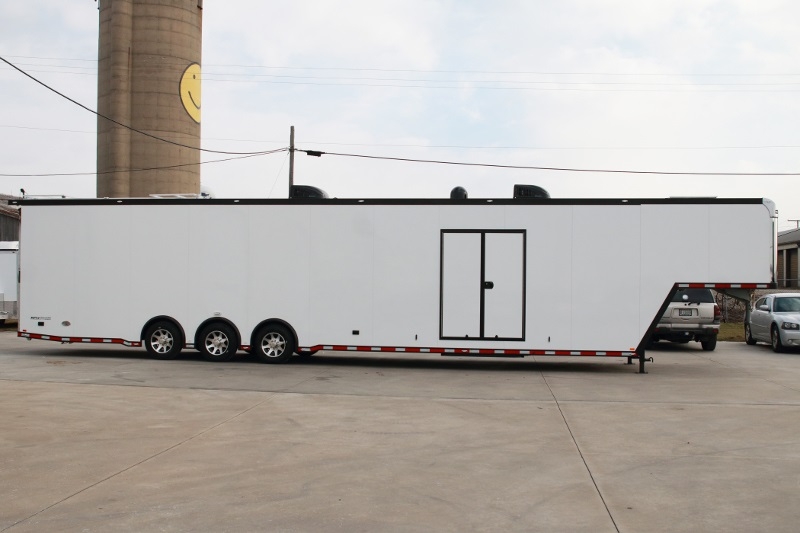

Upgrade to 60″ 405 Series Double Side Door
Add 5′ Aluminum Ramp Extension – 84″ Wide w/ 3″ Bumpers
10KW Onan Generator Package (120V/240V) – Diesel:
In Frame Fuel Tank
Interior Insulated Generator Compartment
48″ x 36″ 405 Series Vented Gen Door
Automatic Transfer Switch
12V Marine Grade Battery in Vented Box
Remote Start, Fuel Gauge & Hour Meter
10) additional 120V 15A Recepts
Add 3 Way Light Switches (Pair)
8) additional 12V 18″ LED Interior Light
Upgrade 3) Standard LED Dome Light to 12V 18″ LED Light
14) Additional Panelite LED Clearance Lights
Panelite Backup Lights – Pair
Side Mount LED Turn Signal/Clearance and Turn Combo (Pair)
12V LED Docking Back Up Flood Lights (Pair)
34″ High Carpet on Interior Walls
Insulated Walls & Ceiling – R4 Rated
Add additional Premium Lower Aluminum Cabinet w/ Clear Anodized Trim
Add Aluminum Dresser Closet to Lower Cabinet
Add additional Premium Upper Aluminum Cabinet w/ Clear Anodized Trim
Wheel Well Cabinet Triple Axle – Width of Wheel Well
Add Airline Track – Surface Mounted
Add Airline Track – Recessed
Airline Track Single Stud Tie Down Ring
Double Stud Airline Track Tie Down Ring
18″ Wide Tie Down Strap Hangers – Pair
Upgrade to Lowered Skirt w/ Reverse Beavertail Design – Triple Axle

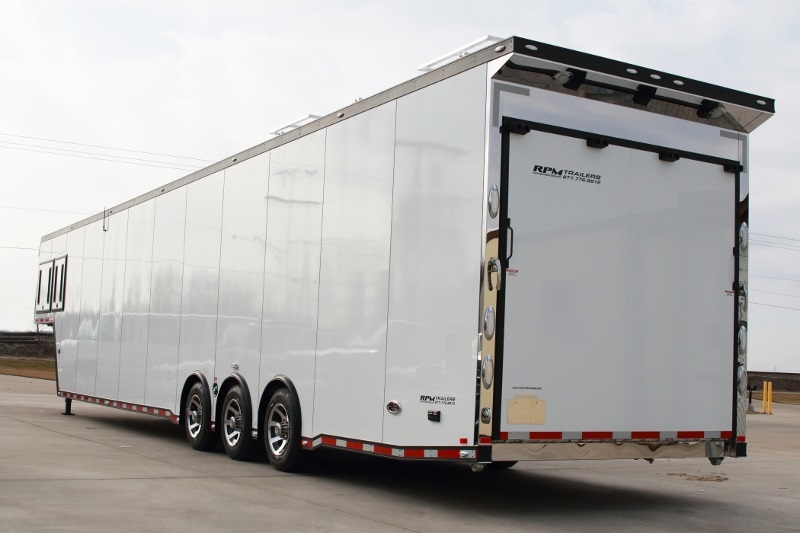

Color Matched Rear Spoiler
Black Anodized Exterior Package
2) 15,000 BTU A/C with Heat Strips
Upgrade to Digital Wall Mount Thermostat for A/C
In Floor Winch Box w/ Pulley – Angled Mount
4000# Winch w/ Wireless Remote Control & Synthetic Rope
Add Air Compressor w/ 3 Hard Lined Outlets
Add Additional Airline Outlet to Prep Package
TV Prep Package:
Roof Mounted Antenna
Exterior Coax Cable Inlet
120V Interior Recept
Wall Backer for Future Mount Installation
Antenna/Cable Switch Controller
AM/FM/CD Bluetooth Stereo w/ Four Interior Speakers
Add (2) Additional interior Speakers to Radio – Includes Amplifier

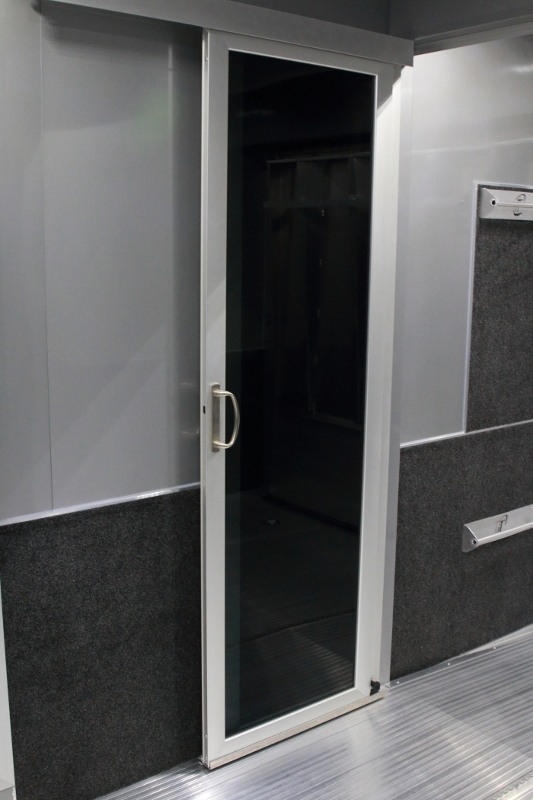

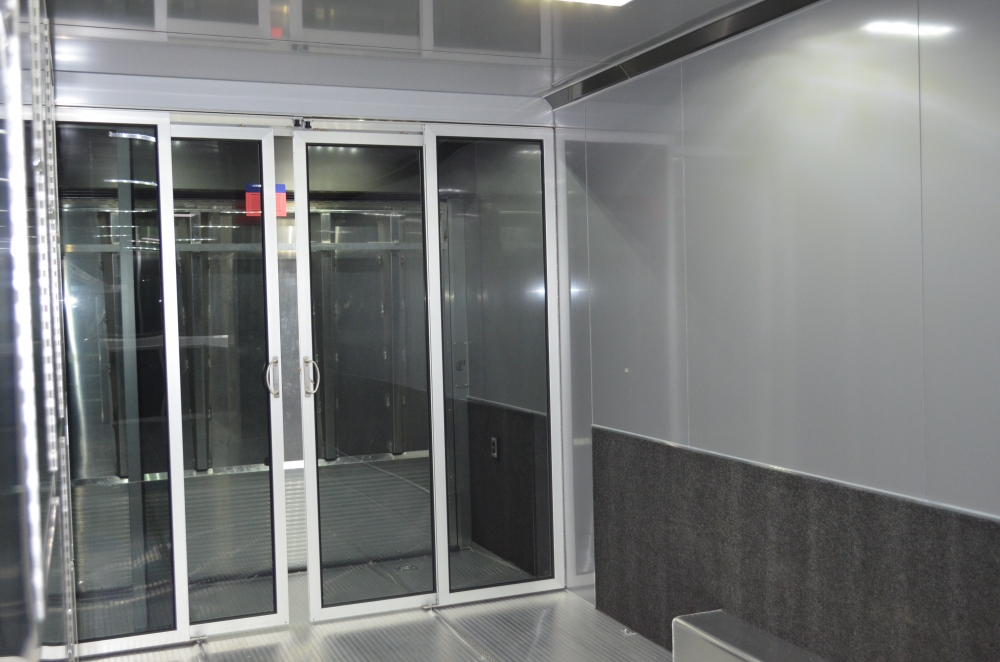

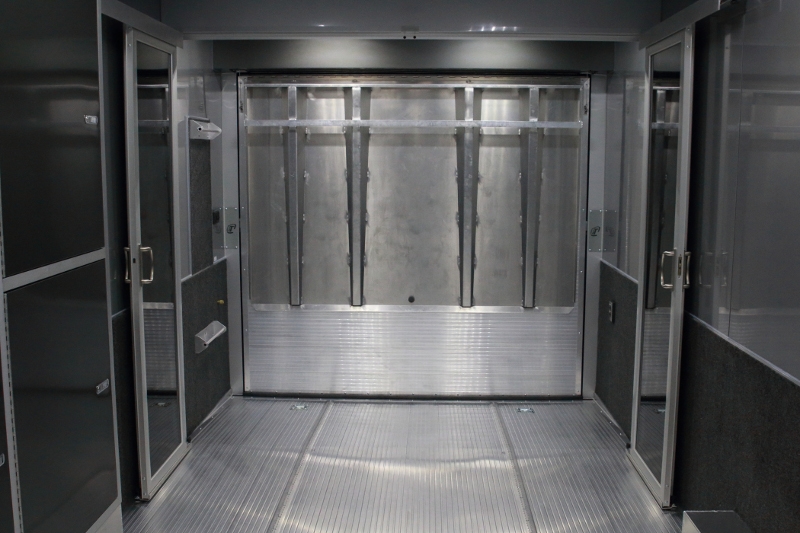

Add Rear Sliding/Fold Away Double Doors
Add Tube Frame To Compressor Compartment to Mount Spare Tire
Winegard Carryout G2 Satellite System on Roof
Now all that…. is what we are talking about! If you are interested in this custom trailer, give us a call at 706-654-2882 for details!
