Product Specs:
Condition: New
Product Code: 12600
Model: BGA8548TTA5
Size: 8′ 6″ x 48′
Make every journey a personal one with a custom race car trailer by RPM Trailer Sales. Custom Trailers are our specialty! RPM is committed to satisfying the unique needs of each of our individual that orders a car hauler by providing a premium quality custom product at an affordable price. We take pride in the fact that we design the best aluminum trailers money can buy. Making sure that each part of the trailer, no matter how insignificant, is of the highest quality possible. We design and custom build to not only meet but exceed the expectations of our customers.
Brad Sellers, owner and our custom trailer designer, designs each of our custom motorsports trailers with your needs in mind. Call RPM Trailer Sales for your next aluminum race car trailer at 706-654-2882. RPM Trailer Sales is determined to design the best aluminum trailers in the industry! The guaranteed quality, fit and finish of all our trailers is the reason why RPM is the largest aluminum trailer dealer nationwide.
“Often Imitated – Never Duplicated”
GVWR: 24,000 lbs.
Shipping Weight: 11,400 lbs.
Interior Height: 8’
Axle Type: Triple 8,000 lb. Torsion Axles
Model: BGA8548TTA5
Product Number: 12600
See Detailed Specifications
Check out all the detailed specifications for this amazing 48’ Race Car Hauler and contact us today at 706-654-2882.
Chassis
Full Perimeter Aluminum Frame
All Tube Construction
Dexter Torsion Axles
Electric Brakes – All Axles
Breakaway Battery Kit
7-Way Trailer Plug
2 5/16″ Adjustable GN Coupler
Safety Chains w/ Storage Loop
Dual Leg Manual Landing Gear
16″ O/C Floor Crossmembers
16″ O/C Wall Studs
16″ O/C Roof Studs
Smooth Aluminum Wheel Boxes
Spread Axle Design w/ Individual Fenderettes
LT215/75R17.5 Nitro Filled Tires w/ Steel Wheels
Interior
One Piece Aluminum Subfloor Vapor Barrier
3/4″ Plywood Subfloor
3) 12V LED Dome Lights w/ Switch
1) 12V Power Roof Vent
7′ Standard Interior Height
4) 5000# Recessed D-Rings
4′ Beavertail
Exterior
.030 Aluminum Skin
Screwless/Rivetless Aluminum Exterior
One Piece Aluminum Roof
Arched & Trussed Walk-On Service Roof
3″ Upper and Lower Rub Rail
LED Premium Clearance Lights
LED Slimline Tail Lights
ATP Enclosed Riser w/ (2) Storage Doors
36″ 405 Series Entrance Door
FMVSS Premium Entrance Door Latch
Color Matched Front Verticals
Rear Ramp Door w/ Gapless Continuous Hinge
Aluminum Bar Locks
Rear Ramp Door
Rear Skid Plates
Selected Options:
48′ iCon Package
Exterior Upgrades:
Upgrade to 48″ 405 Series Door
FMVSS Side Door Lock
Aluminum Slide Out Step
Upgrade to Aluminum Wheels
Upgrade to .040 Exterior Aluminum Skin
Upgrade to Cast Corners w/ Stainless Steel Verticals & Radius
Stainless Steel Rear Header & Posts
Upgrade to 4″ Upper & Lower Side Trim
Upgrade to Stainless Steel Paddle Latches
40″ x 36″ 405 Series Generator Door
Awning Rail
Electrical Upgrades
50 Amp Electrical Service
50 Amp Gen Prep w/ Transfer Switch
Requires 240V Panel Upgrade to Use 240V
Motorbase Plug & 25′ Shore Cord
12V Battery & Box Wired
Battery Shelf in Riser Compartment
12V Fuse Panel
60 Amp Converter for 12V
3) 15 Amp Interior Recepts
1) 15 Amp Exterior Recept
4) 48″ Fluorescent Lights – Recessed
3 Way Light Switch for Fluorescent Lights
2) 120V 500 Watt Quartz Halogen Lights
12V Cutoff Switch
Upgrade to Panel Lite Exterior Lights
Upgrade to Dual Brake Lights
Interior Upgrades
Screwless Aluminum Walls & Ceiling
Add Roof Vent w/ Wire for Future AC

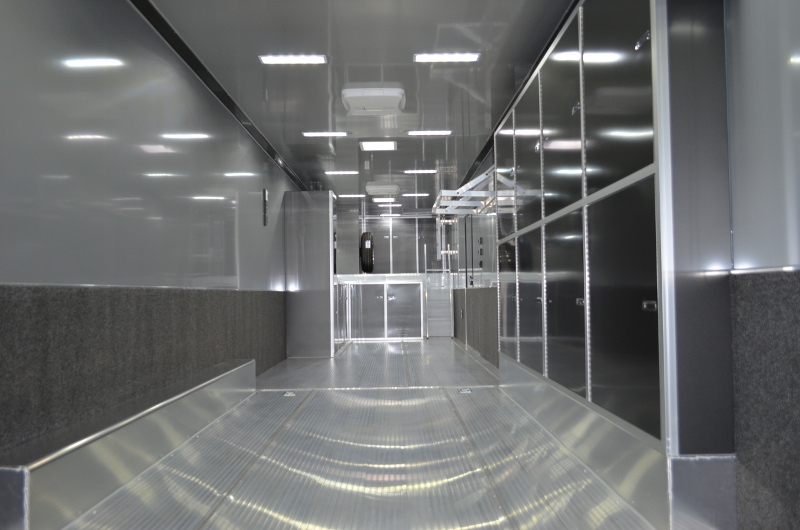

Extruded Aluminum Floor
Gray Carpet in Riser Area
Extruded Aluminum Ramp
One Piece Aluminum Transition Flap

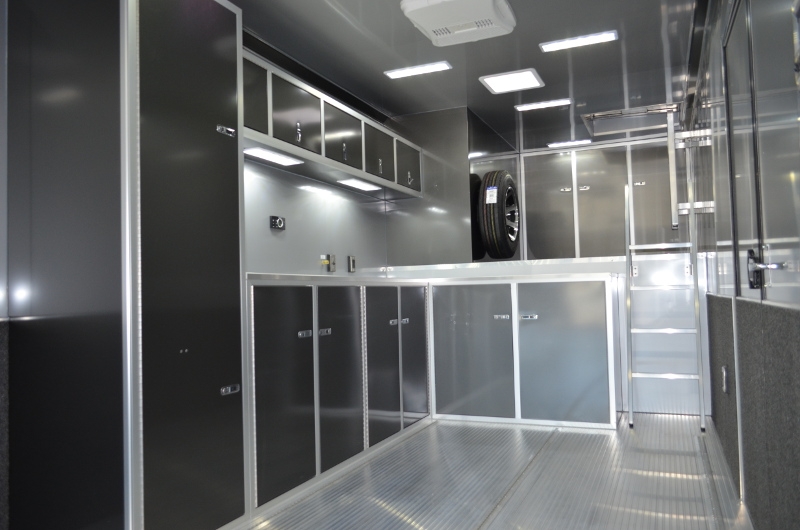

8′ Premium Aluminum Upper Cabinet
8′ Premium Aluminum L Shaped Lower Cabinet
LED Light Under Upper Cabinet
Gen Compartment in L Cabinet
Additional Selected Options:
Upgrade iCon Gen Box Location to Stand Alone in Riser
Upgrade to .050 Exterior Aluminum Skin from .040
Upgrade 4) 48″ Fluorescent Light to 18″ 12V LED Light
Upgrade to Heavy Duty Walk on Roof
12″ Additional Height

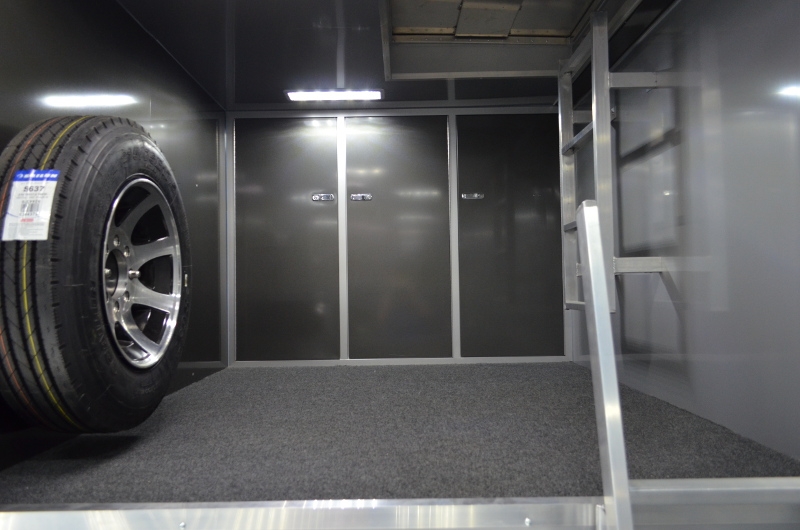

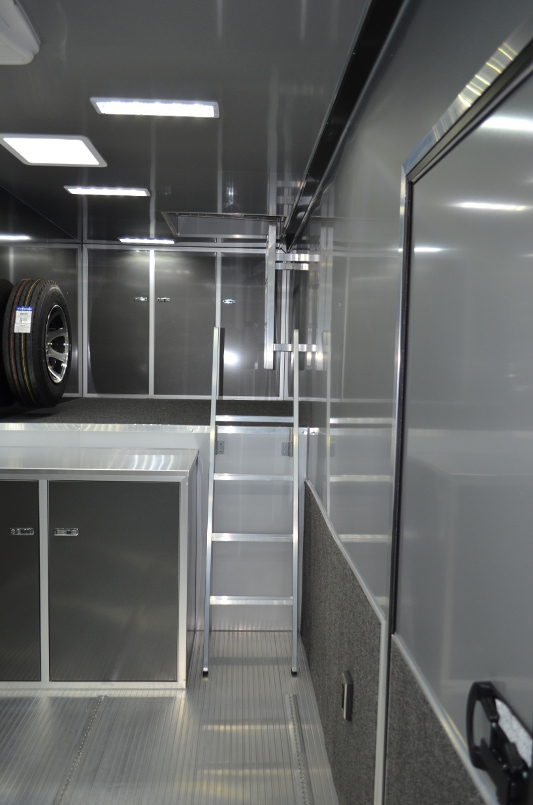

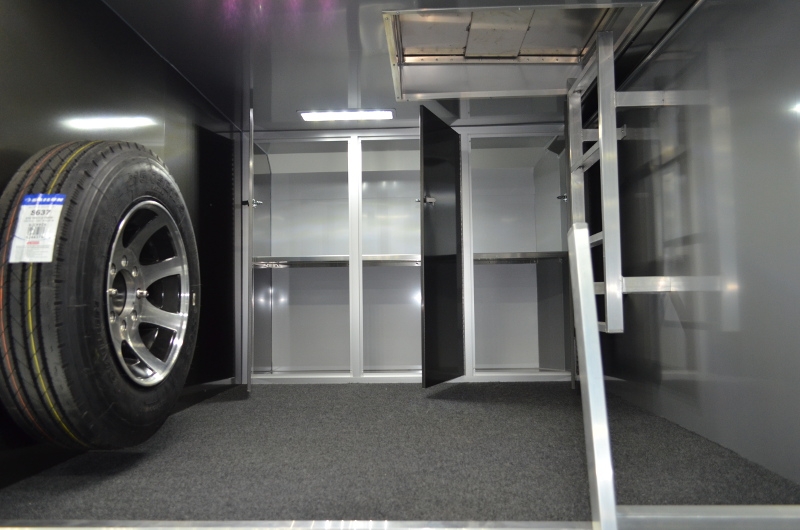

Removable Ladder for Access to Bunk
30″ x 30″ Roof Escape Hatch w/ Interior Ladder

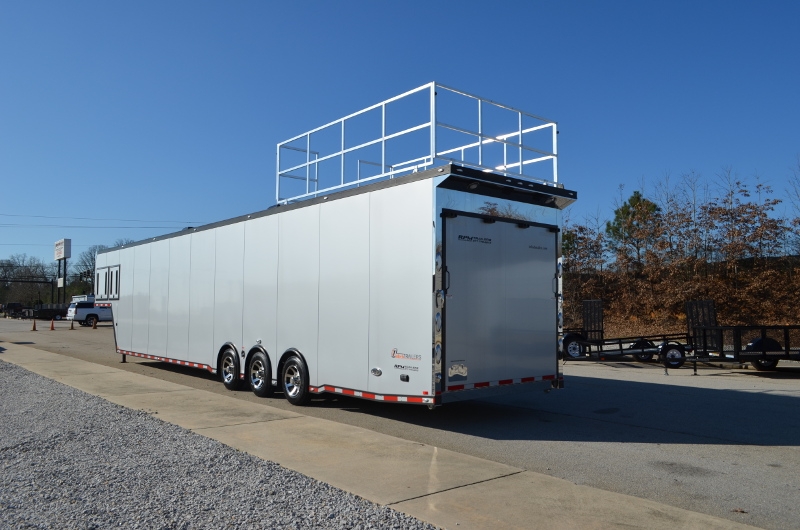

40’ feet Roof Mounted Viewing Rail – Open Rails
Rear Caster Wheels – Pair
Upgrade to Single Post Hydraulic Jack
Spare Tire on Aluminum Wheel

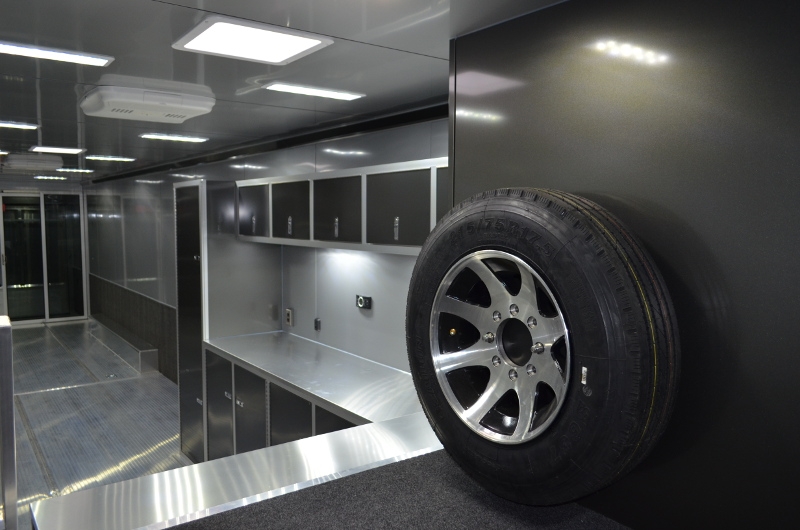

Spare Tire Wall Mount

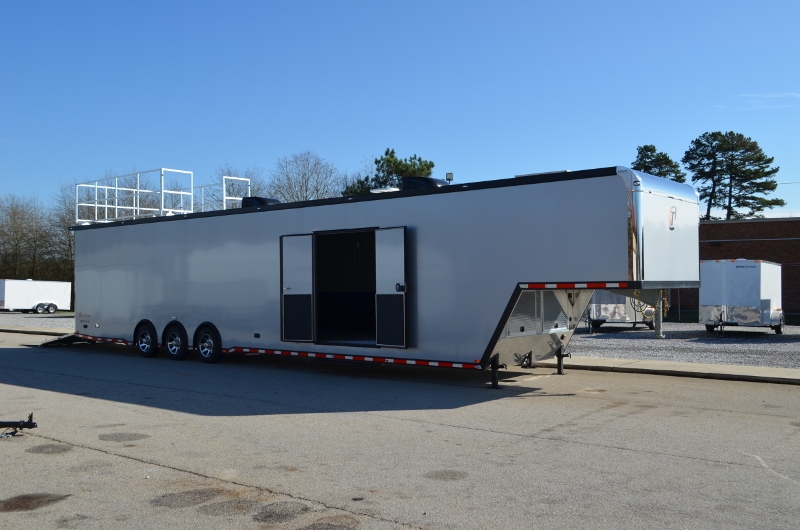

Upgrade to 60″ 405 Series Double Door
Add 5′ Aluminum Ramp Extension – 84″ Wide w/ 3″ Bumpers

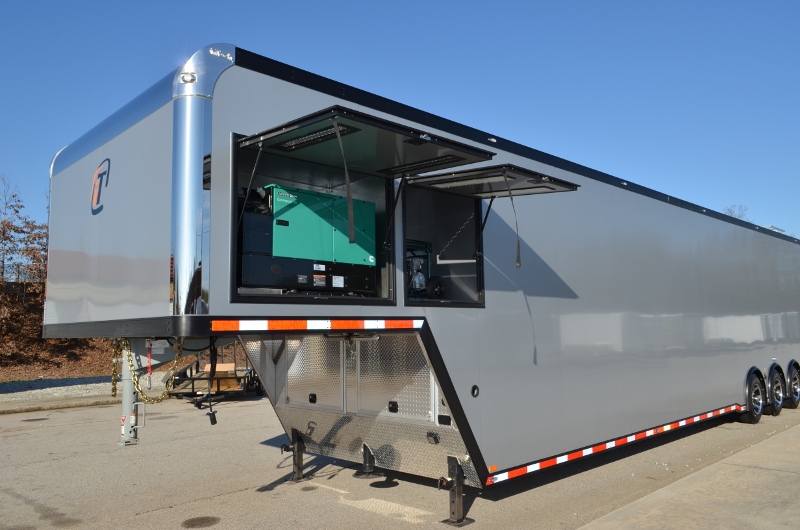

10KW Onan Generator Package (120V/240V) – Diesel
In Frame Fuel Tank
Remote Start, Fuel Gauge & Hour Meter
8) additional 120V 15A Recept
Additional 3 Way Light Switches (Pair)
8) additional 12V 18″ LED Interior Light
Upgrade 3) Standard LED Dome Light to 12V 18″ LED Light
14 additional Panelite LED Clearance Lights
Add Panelite Backup Lights – Pair
Side Mount LED Turn Signal/Clearance and Turn Combo (Pair)
Add 12V LED Docking Back Up Flood Lights (Pair)
Add HDMI Cable Run w/ (2) Finished Faceplates
34” High Carpet on Interior Walls
Insulated Walls & Ceiling – R4 Rated

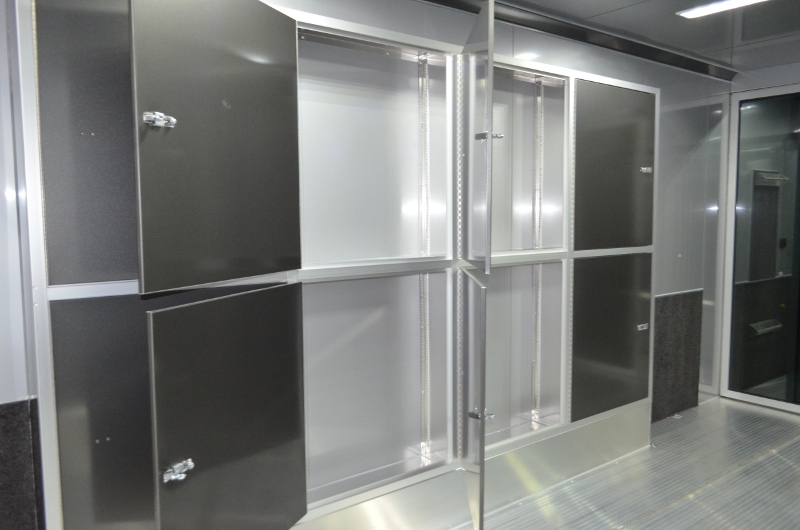

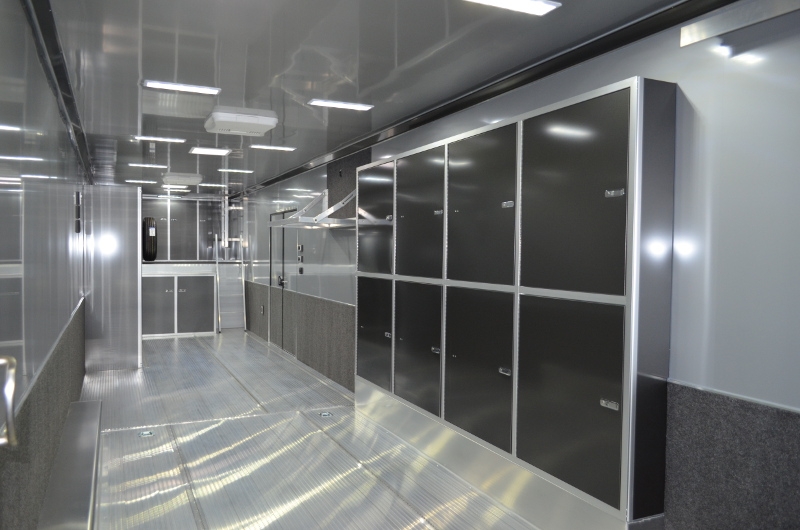

Add 8′ Premium Lower Aluminum Cabinet w/ Clear Anodized Trim
9’ Premium Lower Aluminum Cabinet w/ Clear Anodized Trim
Add Aluminum Dresser Closet to Lower Cabinet
3’ Premium Upper Aluminum Cabinet w/ Clear Anodized Trim
Wheel Well Cabinet Triple Axle – Width of Wheel Well – Up to 7′ Interior Height
Airline Track – Recessed

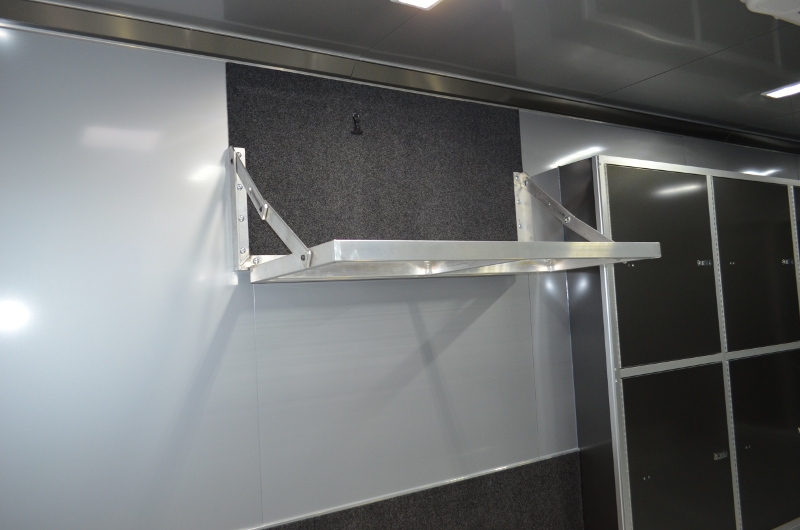

Tire Rack – 4′ Fold Up Wall Mounted

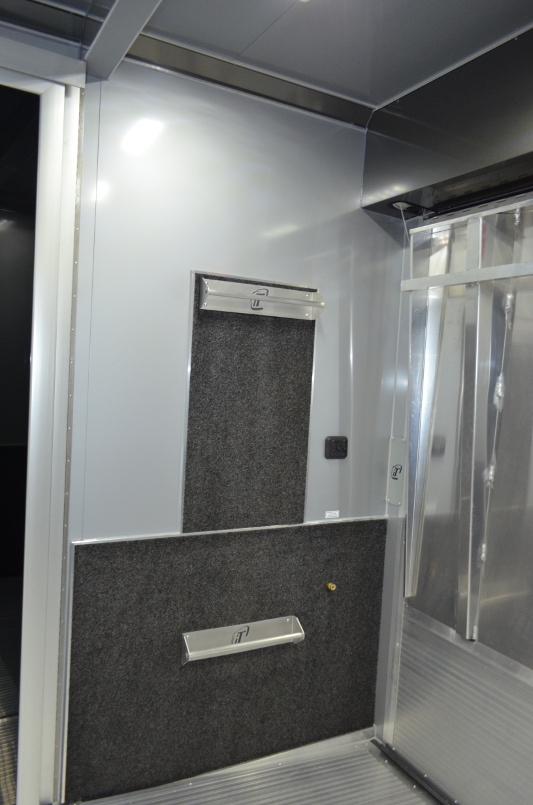

18″ Wide Tie Down Strap Hangers – Pair
Upgrade to .040 Interior Aluminum Skin from .030
Upgrade to Lowered Skirt w/ Reverse Beavertail Design – Triple Axle
Color Matched Rear Spoiler
25) 15,000 BTU A/C w/ Heat Strip
Upgrade to Digital Wall Mount Thermostat for A/C
Add Air Compressor w/ 3 Hardlined Outlets
TV Prep Package

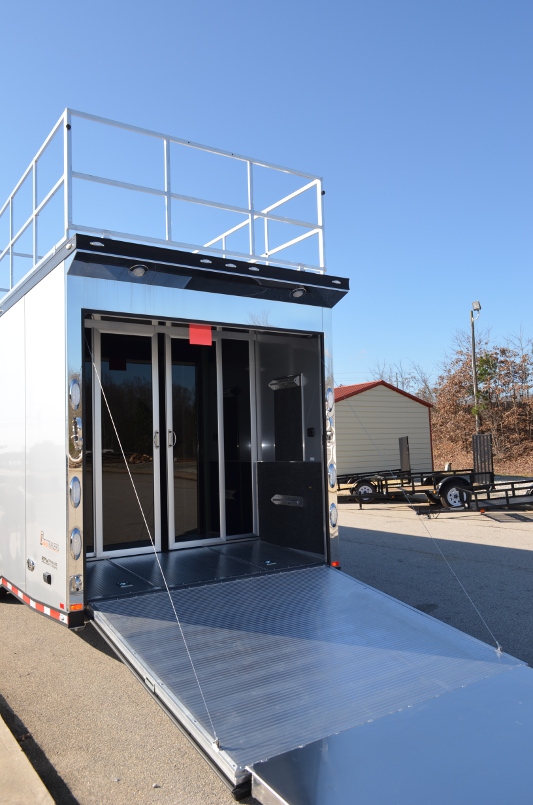

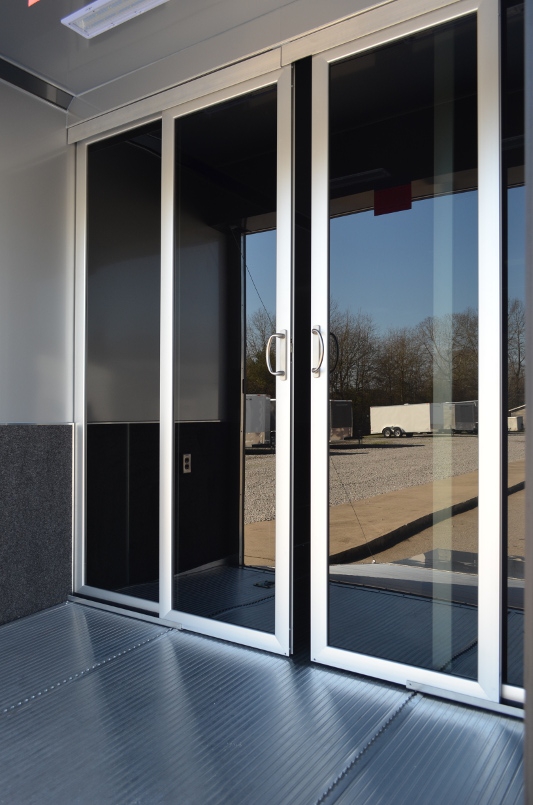

Rear Sliding/Fold Away Double Doors
Black Anodized Exterior Package
