42′ Custom Aluminum Race Trailer with Bathroom Package

Chassis
Full Perimeter Aluminum Frame
All Tube Construction
Dexter Torsion Axles
Electric Brakes – All Axles
Breakaway Battery Kit
7-Way Trailer Plug
2 5/16″ Adjustable GN Coupler
Safety Chains w/ Storage Loop
Dual Leg Manual Landing Gear
16″ O/C Floor Crossmembers
16″ O/C Wall Studs
16″ O/C Roof Studs
Smooth Aluminum Wheel Boxes
Spread Axle Design w/ Individual Fenderettes
ST235/85R16 Nitro Filled Tires w/ Steel Wheels

Interior
One Piece Aluminum Subfloor Vapor Barrier
3/4″ Plywood Subfloor
3) 12V LED Dome Lights w/ Switch
1) 12V Power Roof Vent
7′ Standard Interior Height
4) 5000# Recessed D-Rings
4′ Beavertail

Exterior
.030 Aluminum Skin
Screwless/Rivetless Aluminum Exterior
One Piece Aluminum Roof
Arched & Trussed Walk-On Service Roof
3″ Upper and Lower Rub Rail
LED Premium Clearance Lights
LED Slimline Tail LightsATP Enclosed Riser w/ (2) Storage Doors
36″ 405 Series Entrance Door
FMVSS Premium Entrance Door Latch
Color Matched Front Verticals
Rear Ramp Door w/ Gapless Continuous Hinge
Aluminum Bar Locks – Rear Ramp Door
Rear Skid Plates

Selected Options:
42′ icon Package
Exterior Upgrades
Upgrade to 48″ 405 Series Door
FMVSS Side Door Lock
Aluminum Slide Out Step
Upgrade to Aluminum Wheels
Upgrade to .040 Exterior Aluminum Skin
Upgrade to Cast Corners w/ Stainless Steel Verticals & Radius
Stainless Steel Rear Header & Posts
Upgrade to 4″ Upper & Lower Side Trim
Upgrade to Stainless Steel Paddle Latches
40″ x 36″ 405 Series Generator Door
Awning Rail

Electrical Upgrades
50 Amp Electrical Service
50 Amp Gen Prep w/ Transfer Switch
Requires 240V Panel Upgrade to Use 240V
Motorbase Plug & 25′ Shore Cord
12V Battery & Box Wired – Battery Shelf in Riser Compartment
12V Fuse Panel – 60 Amp Converter for 12V
3) 15 Amp Interior Recepts – (1) 15 Amp Exterior Recept
4) 48″ Fluorescent Lights – Recessed – 3 Way Light Switch for Fluorescent Lights
2) 120V 500 Watt Quartz Halogen Lights – 12V Cutoff Switch
Upgrade to Panel Lite Exterior Lights
Upgrade to Dual Brake Lights

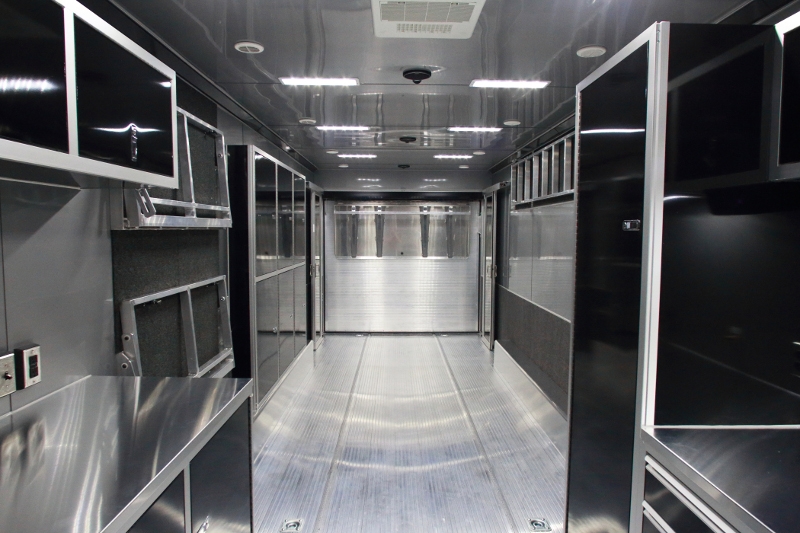

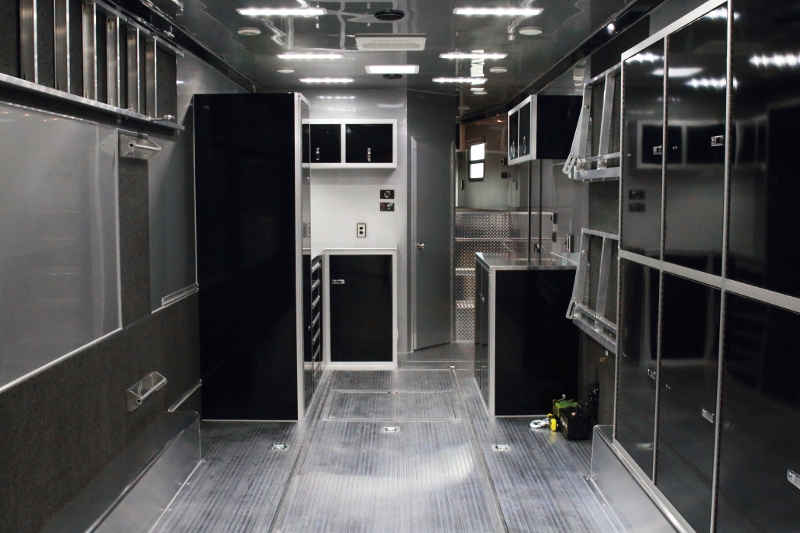

Interior Upgrades
Screwless Aluminum Walls & Ceiling
Add Roof Vent w/ Wire for Future AC
Extruded Aluminum Floor

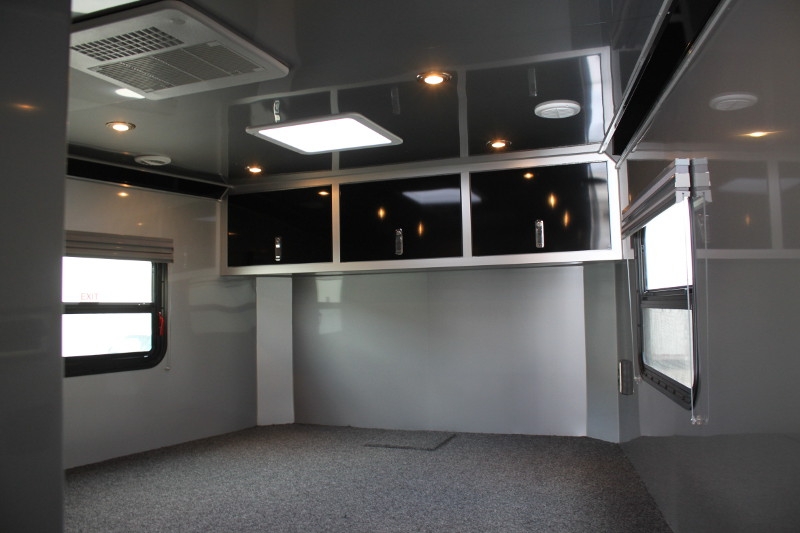

Gray Carpet in Riser Area
Extruded Aluminum Ramp
One Piece Aluminum Transition Flap

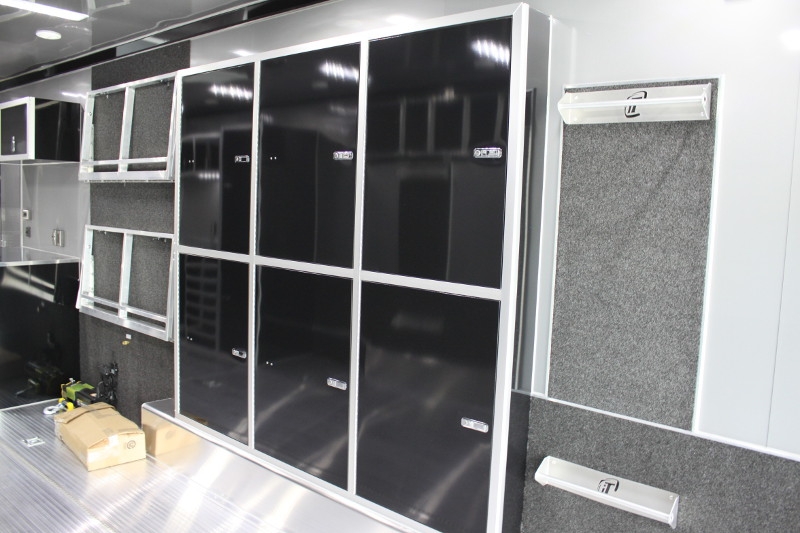

8′ Premium Aluminum Upper Cabinet
8′ Premium Aluminum L Shaped Lower Cabinet
LED Light Under Upper Cabinet
Gen Compartment in L Cabinet
Additional Options & Features Added
Downgrade to Straight Base Cabinet From L-Base
4) Upgrade 48″ Fluorescent Light to 18″ 12V LED Light
Upgrade 2) 500W Quartz Recessed Lights to Whelen 900 Series Super LED
Upgrade to Recessed Stainless Steel Latches into Ramp Door From Paddle Latches- Pair

GN Corner Bath Package
Fixtures
2) Towel Holders
1) TP Holder
Aluminum Base Cabinet for Sink
Aluminum Upper Cabinet Above Toilet
Flooring & Wall Coverings As Optioned
Minimum 7′ Interior Height
Mirror Above Sink
Partition Wall w/ 24″ Man Door
Bunk Partial Partition Wall

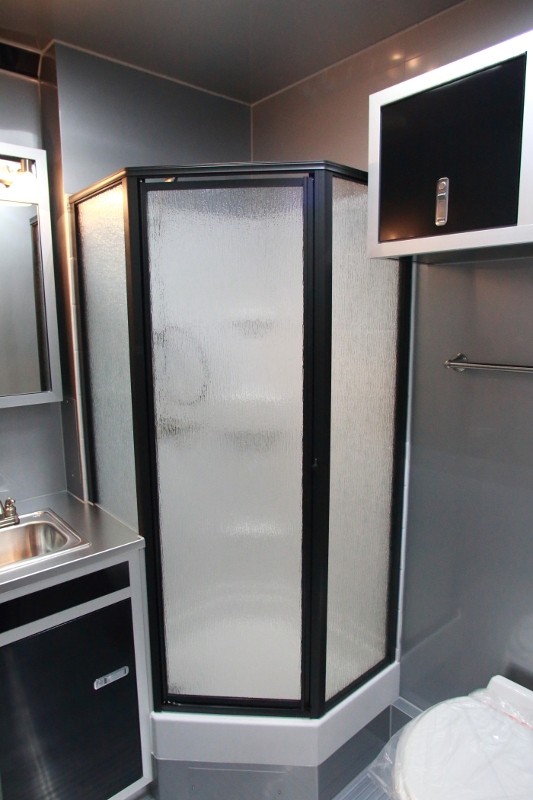

Neo-Angle Shower w/ Glass Door
RV Style Plastic Toilet

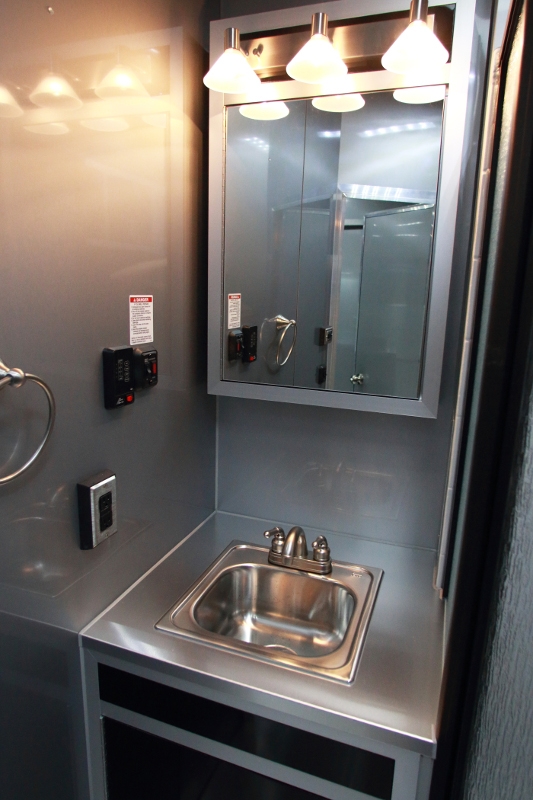

Stainless Steel Single Bowl Sink
12V Power Roof Vent
Plumbing & Power
1) 120V 15A Outlet
10 Gallon 120V Hot Water Heater
12V 18″ LED Light
12V Sconce Light Above Mirror
12V Water Pump – 3.0 GPM
Black Water Tank
City Water Hookup
Fresh Water Tank
Gravity Water Fill
Gray Water Tank
Tank Monitor Panel
Under Trailer Dump Valves
Upgrade to 10 Gallon DSI LP/Electric Combo Water Heater From Electric
2) 20 lb. LP Tanks – Includes LP Detector

More Additional Options & Features
Upgrade to Vanity Cabinet Above Sink
Taper Nose for Gooseneck
Decrease Beavertail Size
Upgrade to 97.5″ Rear Ramp Door Opening
102″ Wide Body
Trailer Body Width Over Standard Legal Limit
Waiver Sign Off Required
Bar Locks Used – Paddle Latches Not Available
Upgrade to Ramp Door Mounted Tail Lights Included
Upgrade to Heavy Duty Walk on Roof
Upgrade to Super Spread Tandem Axle w/ Skirt from Triple Axle
Full Perimeter Skirt Included w/ Reverse Beavertail
12″ Additional Height
Removable Exterior Ladder w/ Interior Hangers
Roof Mounted Viewing Rail – Open Rails / Ft – Single Side
Rear Caster Wheels – Pair
Upgrade to Single Post Hydraulic Jack – Battery Not Included
Spare ST235/85R16 on Aluminum Wheel
In Floor Spare Tire Compartment
Upgrade to 60″ 405 Series Double Door
Upgrade to Full Width Ramp Extension Up to 48″ Long w/ 3″ Bumpers
3″ Bumper for Rear Ramp Door
30″ x 20″ Vertical Slider Window w/ Screen
30″ x 20″ Egress Vertical Slider Window w/ Screen
2) Day/Night Shade to Window

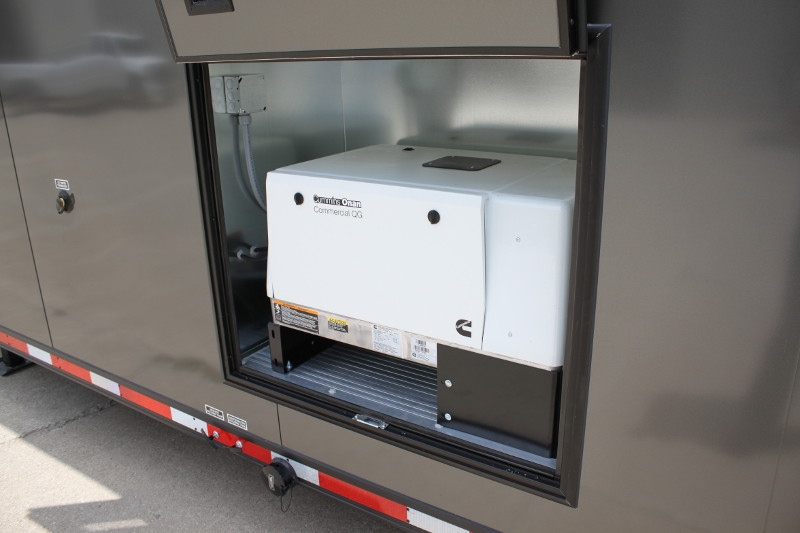

7.0KW Onan Generator Package (120V/240V) – Gasoline
In Frame Fuel Tank
Interior Insulated Generator Compartment
40″ x 36″ 405 Series Vented Gen Door
Automatic Transfer Switch
12V Marine Grade Battery in Vented Box
Remote Start, Fuel Gauge & Hour Meter

4) additional 120V 15A Recept – GFI Protected Where Required
3 Way Light Switches (Pair)

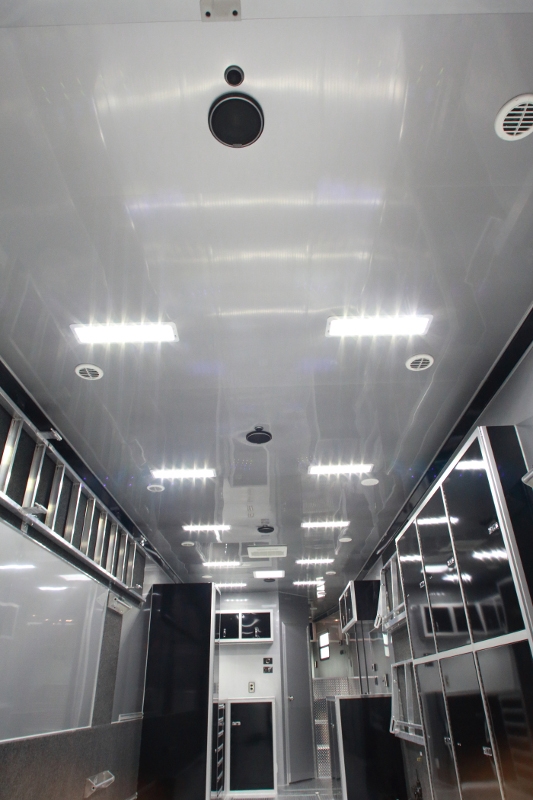

5) additional 12V 18″ LED Interior Light
Upgrade 3) Standard LED Dome Light to 12V 18″ LED Light
6) 12V Bullet Halogen Light – Dimmer Switch Included
14) additional Panelite LED Clearance Lights
Side Mount LED Turn Signal/Clearance and Turn Combo (Pair)
Carpet on Interior Walls – 34″ High
Insulated Walls & Ceiling – R4 Rated

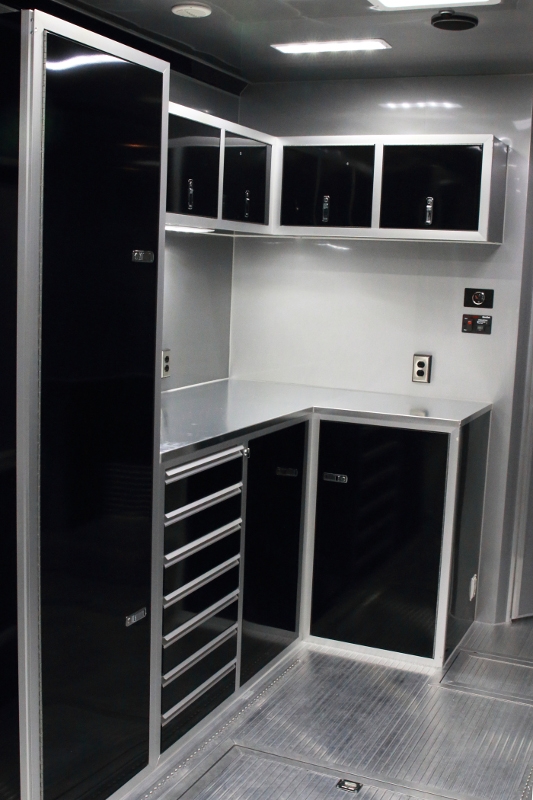

4′ Premium Lower Aluminum Cabinet w/ Clear Anodized Trim
Tool Chest Bank to Lower Cabinet w/ Clear Anodized Trim
Add Premium Standalone Dresser Closet w/ Clear Anodized Trim
4′ Premium Upper Aluminum Cabinet w/ Clear Anodized Trim
8′ Premium Upper Aluminum Cabinet w/ Clear Anodized Trim

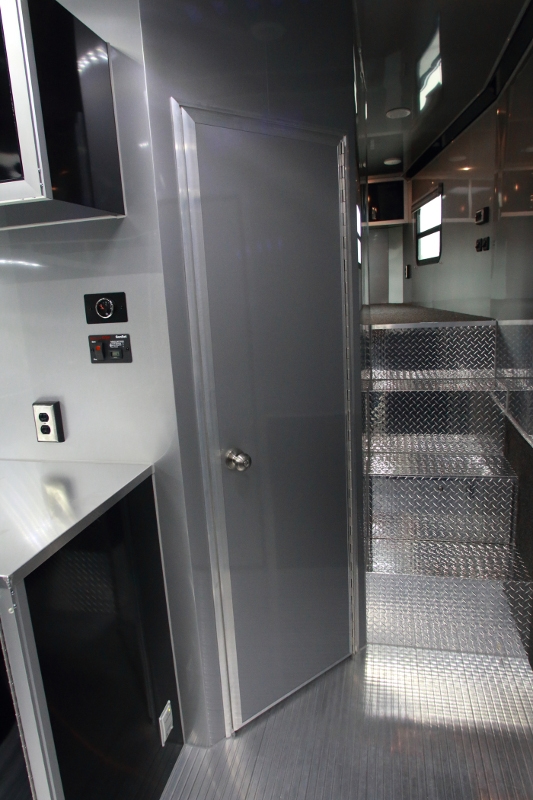

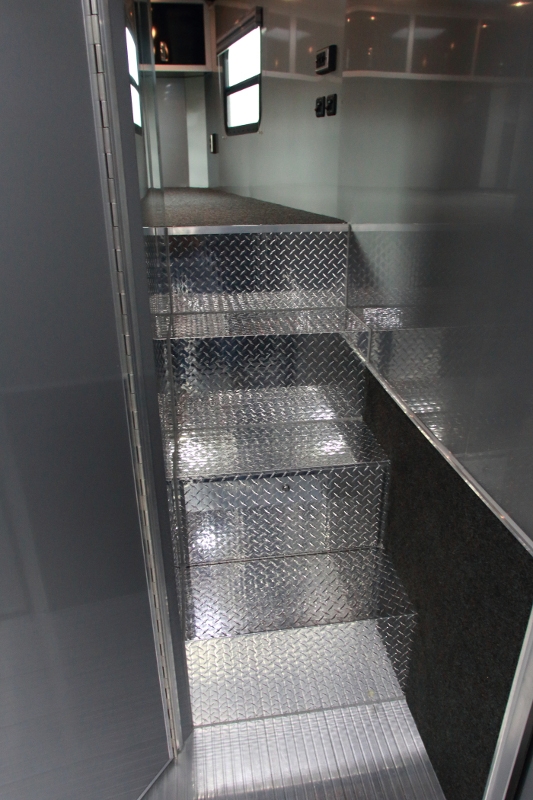

ATP Steps into Gooseneck Riser
Wheel Well Cabinet Tandem Axle – Width of Wheel Well – Up to 7′ Interior Height
additional 5,000 lb. D-Ring – Recessed
Airline Track – Surface Mounted
Airline Track – Recessed
2) 4” Wall Mounted Fold Up Tire Racks
2) 18″ Wide Tie Down Strap Hangers – Pair w/ Protective Wall Carpeting Installed Between Hangers
Color Matched Rear Spoiler
Black Anodized Exterior Package
2) 13,500 BTU Ducted AC w/ Heat Strip
Upgrade to Digital Wall Mount Thermostat for A/C
4,000 lb. Winch w/ Wireless Remote Control & Synthetic Rope
Airline Prep Package – 1 Inlet – 3 Outlets – Dedicated 20A Recept at Inlet
Add AM/FM/CD Bluetooth Stereo w/ Four Interior Speakers
Add (2) Exterior Speakers to Radio – Includes Amplifier
Upgrade Interior Speakers to Component w/ Separate Tweeter
Add 2) adjustable shelf to the Dresser Closet

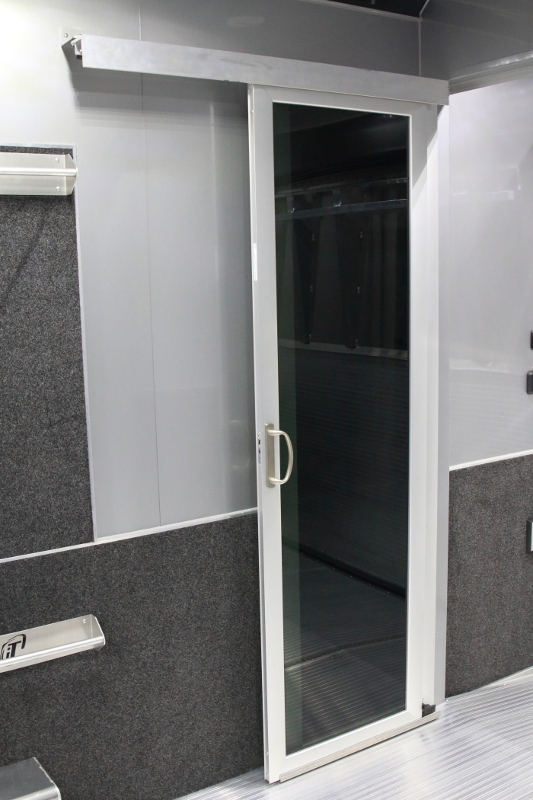

Add Rear Sliding/Fold Away Double Doors
In-Floor Battery Box for (2) Batteries

This amazing custom aluminum trailer has so much to offer, but if this is not exactly what you are looking for, give us a call and we will be happy to custom quote you a trailer. Contact us today at 706-654-2882. RPM Trailer Sales, your source for custom aluminum trailers.
