Product Specs:
Condition: New
Product Code: 11798
Model: BTA2824TA3
Size: 8′ 6″ x 28′
What’s your interior motif? Our extensive range of premium materials, handpicked custom options, and sophisticated finishes gives this all aluminum inTech trailer a stunning design. Take a look at the meticulous attention to detail and see for yourself why Customers choose RPM Trailer Sales for their custom aluminum trailer.

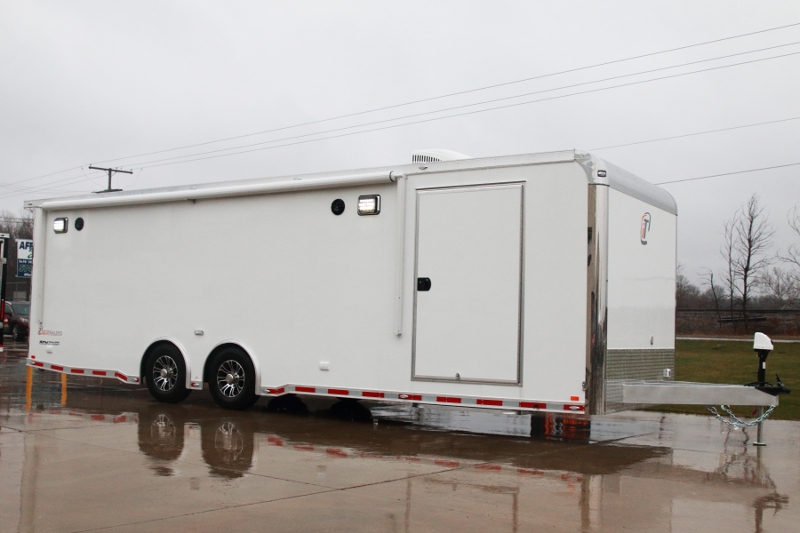

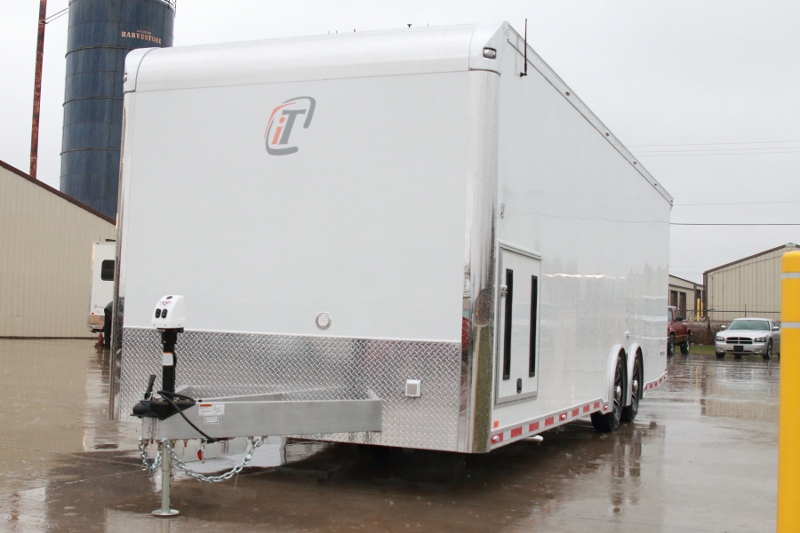

Check out the custom options included in this 28’ aluminum race car hauler starting with a 5.5KW Onan Generator with in- floor fuel tank, rollover sleeper sofa, insulated walls & ceilings and much more.
If you haven’t already, take a good look at the extreme value that RPM Trailer Sales offers, you might just be surprised at just how much trailer you can get for your hard-earned dollar.
Why choose anyone else for your next custom aluminum car trailer! Contact us today for details at 706-654-2882! “Often Imitated – Never Duplicated”
GVWR: 12,000 lbs.
Shipping Weight: 5,650 lbs.
Height: 7’ Interior
Axle Type: Tandem 6,000 lb. Dexter Torsion Axles
Model: BTA8528TA4
Product Number: 11798
See Detailed Specifications
Chassis
Full Perimeter Aluminum Frame
All-Tube Aluminum Construction
Triple Tube A-Frame – Dexter Torsion Axles
Electric Brakes – All Axles
Breakaway Battery Kit
7-Way Trailer Plug
2 5/16″ Ball Coupler
Safety Chains w/ Storage Loop
5,000lb. Manual Jack
16″ O/C Floor Crossmembers
16″ O/C Wall Studs
16″ O/C Roof Studs
Smooth Aluminum Wheel Boxes
Spread Axle Design w/ Individual Fenderettes
ST235/80R16 Nitro Filled Tires w/ Steel Wheels
Interior
One-Piece Aluminum Subfloor Vapor Barrier
3/4″ Plywood Subfloor
2) 12V LED Dome Lights w/ Switch
1) 12V Power Roof Vent w/ Switch
6.5′ Interior Height
4) 5000# Recessed D-Rings
4′ Interior Beavertail
Exterior
.030 Aluminum Skin
Screwless/Rivetless Aluminum Exterior
One Piece Aluminum Roof – Arched & Trussed Walk-On Service Roof
3″ Upper and Lower Rub Rail – LED Premium Clearance Lights
LED Slimline Tail Lights – 24″ ATP Stoneguard
36″ 405 Series Entrance Door – FMVSS Premium Entrance Door Latch
Color Matched Front Verticals
Rear Ramp Door w/ Gapless Continuous Hinge
Aluminum Bar Locks – Rear Ramp Door – Rear Skid Plates
Selected Options:
28′ iCon Package
Exterior Upgrades
Upgrade to 7′ Interior Height
Extended Tongue
Upgrade to 48″ 405 Series Door
FMVSS Side Door Lock
Aluminum Slide Out Step

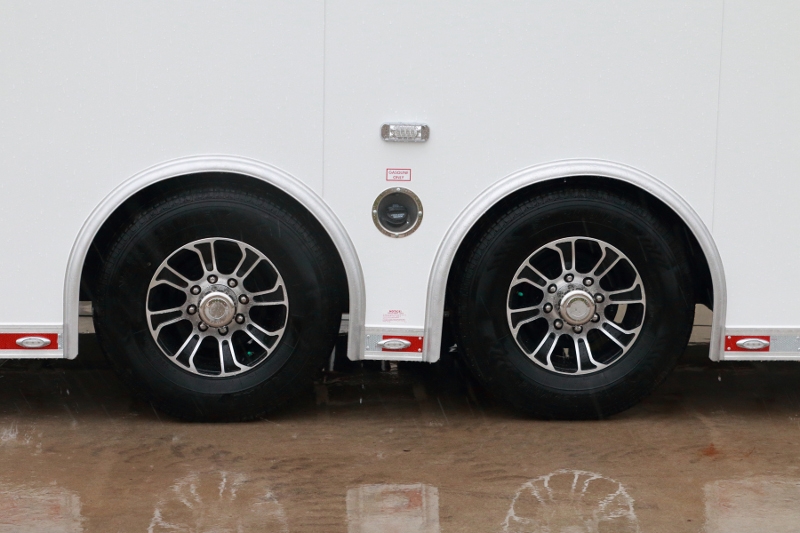

Upgrade to Aluminum Wheels
Upgrade to .040 Exterior Aluminum Skin
Upgrade to Cast Corners w/ Stainless Steel Verticals & Radius Stainless Steel Rear Header & Posts Upgrade to 4″ Upper & Lower Side Trim
Upgrade to Stainless Steel Paddle Latches
40″ x 36″ 405 Series Generator Door
Awning Rail
Electrical Upgrades
50 Amp Electrical Service
50 Amp Gen Prep w/ Transfer Switch
Requires 240V Panel Upgrade to Use 240V
Motorbase Plug & 25′ Shore Cord
12V Battery & Box Wired
12V Fuse Panel
60 Amp Converter for 12V
3) 15 Amp Interior Recepts
1) 15 Amp Exterior Recept
3) 48″ Fluorescent Lights – Recessed
3 Way Light Switch for Fluorescent Lights
2) 120V 500 Watt Quartz Halogen Lights
12V Cutoff Switch
Upgrade to Panel Lite Exterior Lights
Upgrade to Dual Brake Lights
Interior Upgrades
Screwless Aluminum Walls & Ceiling
Add Roof Vent w/ Wire for Future AC
Extruded Aluminum Floor
Extruded Aluminum Ramp
One Piece Aluminum Transition Flap

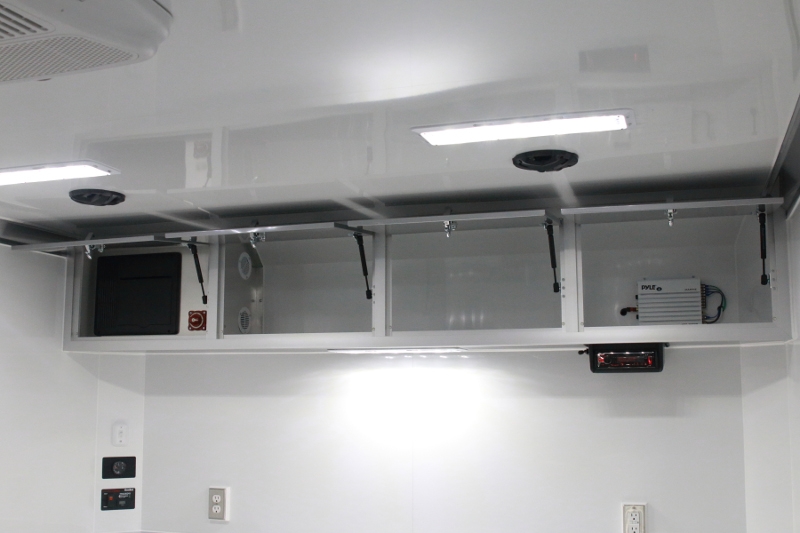

8′ Premium Aluminum Upper Cabinet

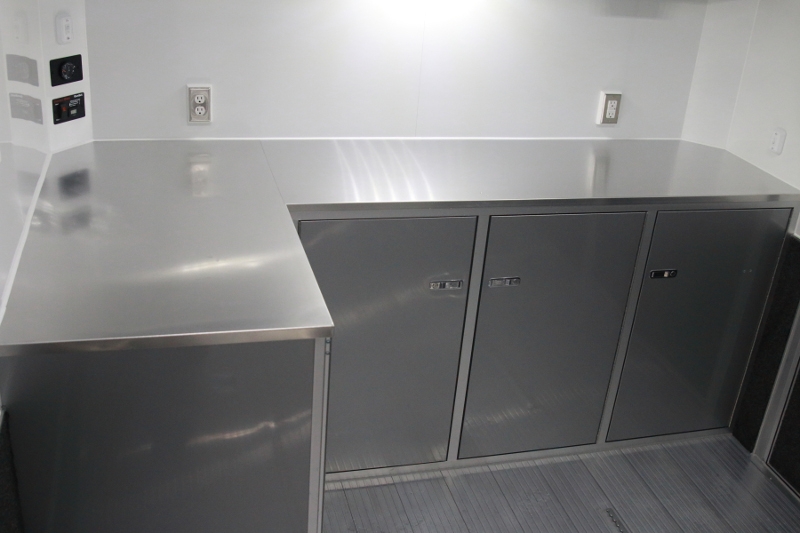

8′ Premium Aluminum L Shaped Lower Cabinet
LED Light Under Upper Cabinet
Gen Compartment in L Cabinet
Additional Upgraded Features:
Upgrade 48″ Fluorescent Lights to 18″ 12V LED Light
Upgrade 2) 500W Quartz Recessed Light to Whelen 900 Series Super LED
Rear Caster Wheels – Pair
Upgrade to 3,500lb. Front Power Jack
Spare ST235/80R16 on Aluminum Wheel

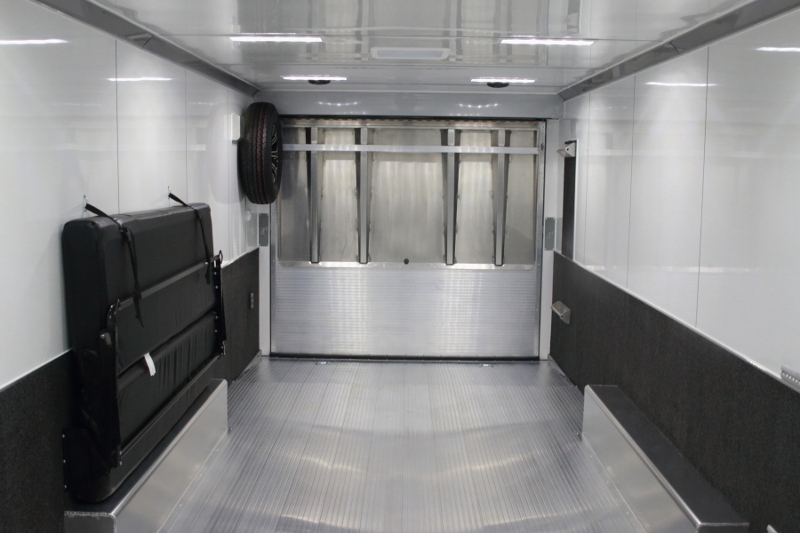

Spare Tire Wall Mount
Upgrade to Full Width Ramp Extension Up to 48″ Long w/ 5″ Bumpers

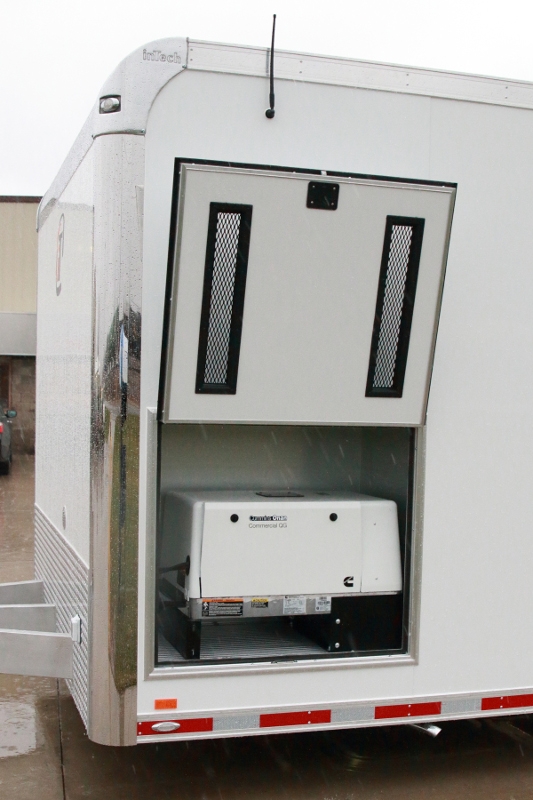

5.5KW Onan Generator Package (120V/240V) – Gasoline
In Frame Fuel Tank
Interior Insulated Generator Compartment
40″ x 36″ 405 Series Vented Gen Door
Automatic Transfer Switch
12V Marine Grade Battery in Vented Box
Remote Start, Fuel Gauge & Hour Meter
1) 120V 15A Recept – GFI Protected Where Required
3) Additional 12V 18″ LED Interior Light
Upgrade 2) Standard LED Dome Light to 12V 18″ LED Light
14) additional Panelite LED Clearance Light
1 each Add Panelite Backup Lights – Pair
Side Mount LED Turn Signal/Clearance and Turn Combo- Pair
34″ High Carpet on Interior Walls
Insulated Walls & Ceiling – R4 Rated
Airline Track – Surface Mount
Airline Track – Recessed

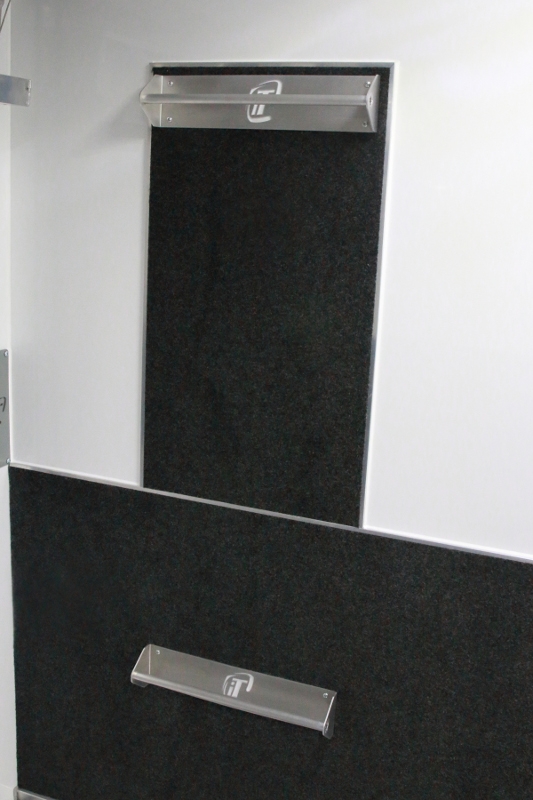

18″ Wide Tie Down Strap Hangers – Pair
Upgrade to Lowered Skirt w/ Reverse Beavertail Design – Tandem Axle

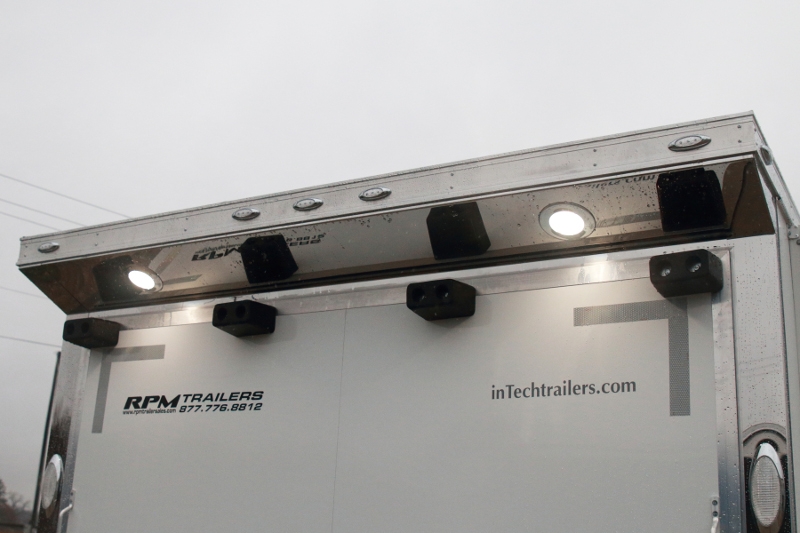

Color Matched Rear Spoiler w/ 2) Integrated LED Loading Lights
20′ Dometic 12V Power Awning w/ Weathershield
15,000 BTU A/C With Heat Strip
Upgrade to Digital Wall Mount Thermostat for A/C

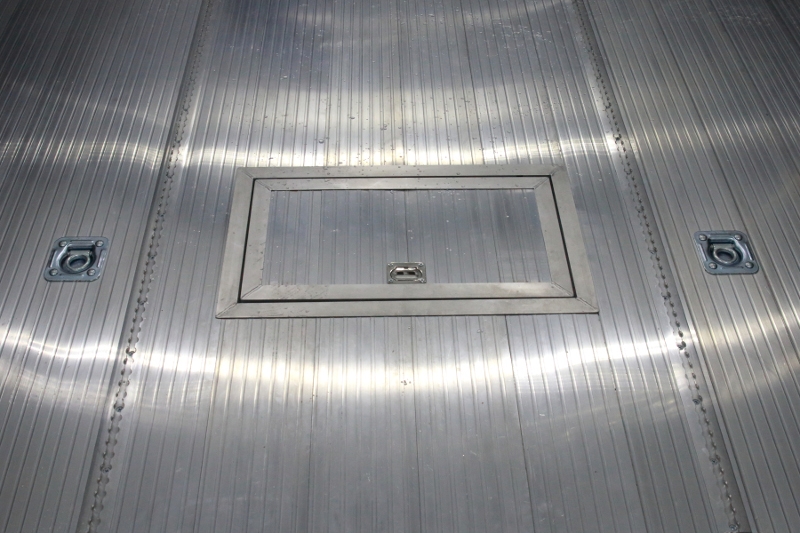

In Floor Winch Box w/ Pulley – Angled Mounted

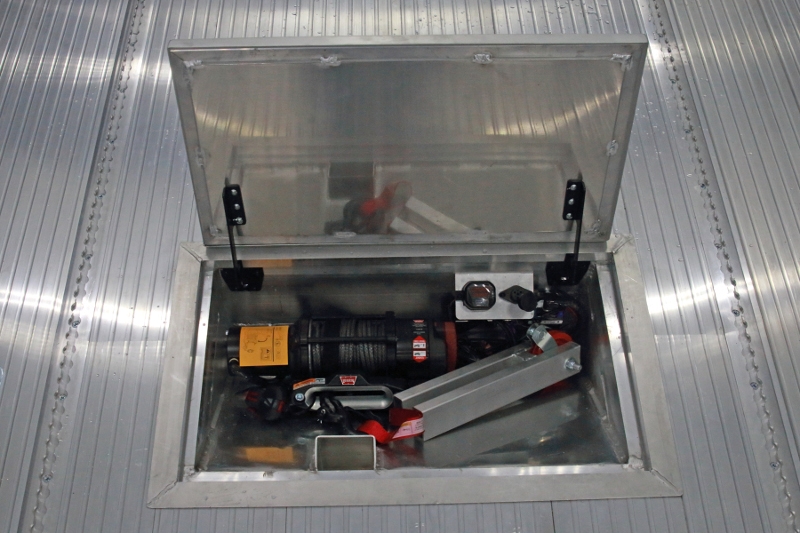

4,500lb. Winch w/ Wireless Remote Control & Synthetic Rope

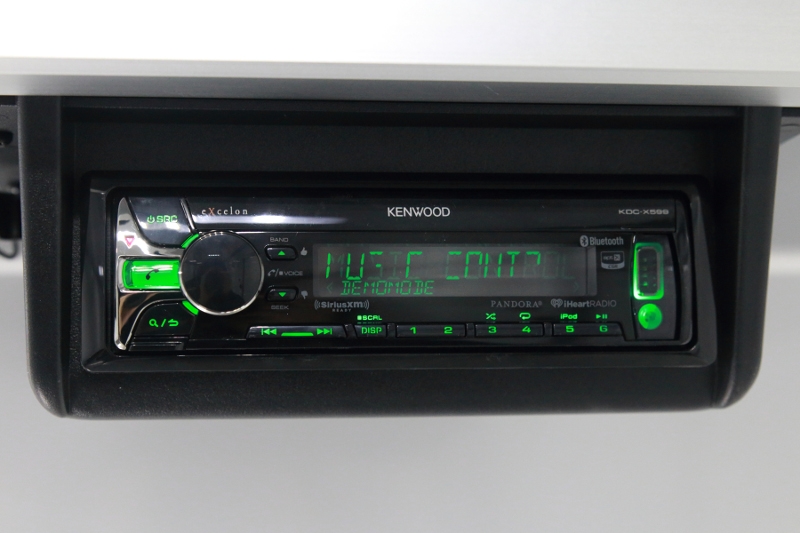

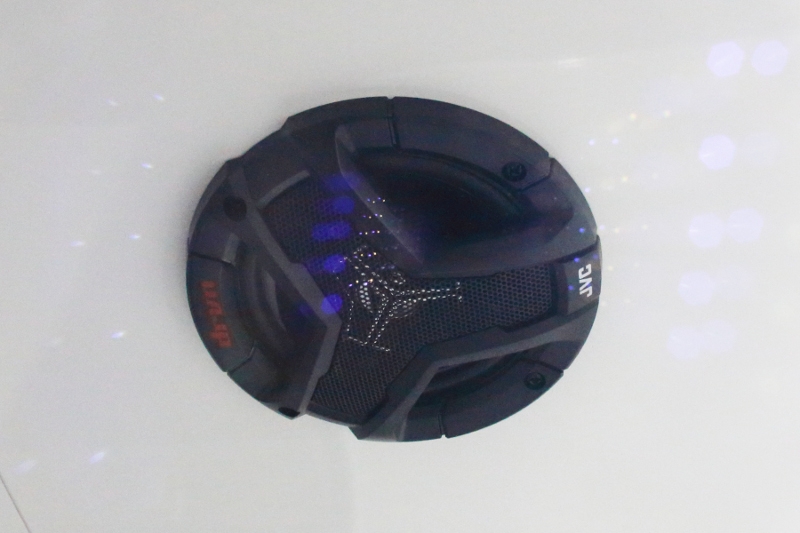

AM/FM/CD Blutooth Stereo w/ Four Interior Speakers

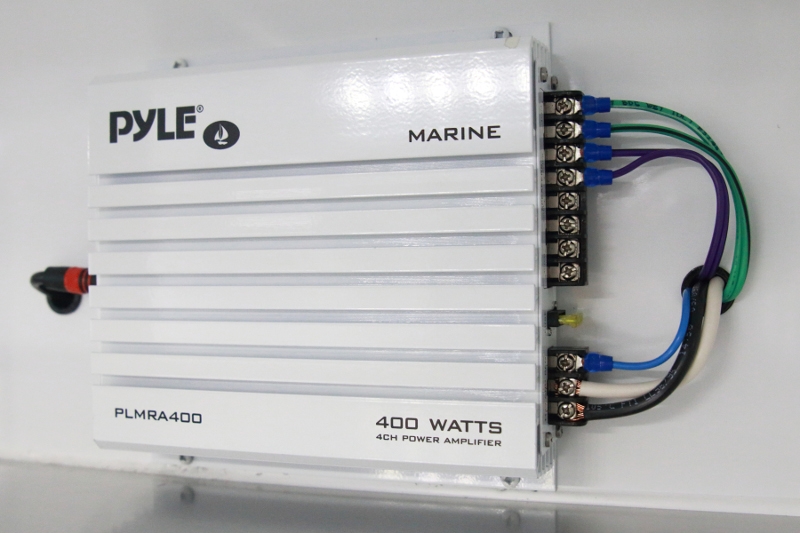

Add (2) Exterior Speakers to Radio – Includes Amplifier
Add Alarm Security System – Pro-Tech

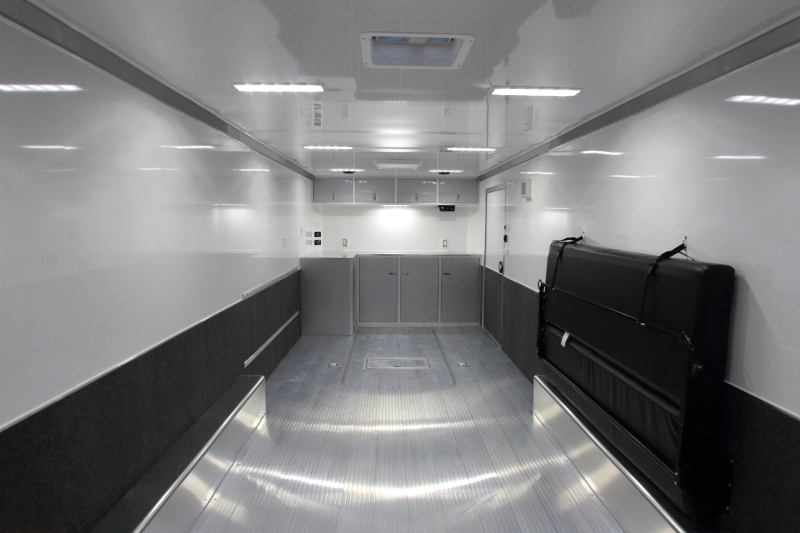

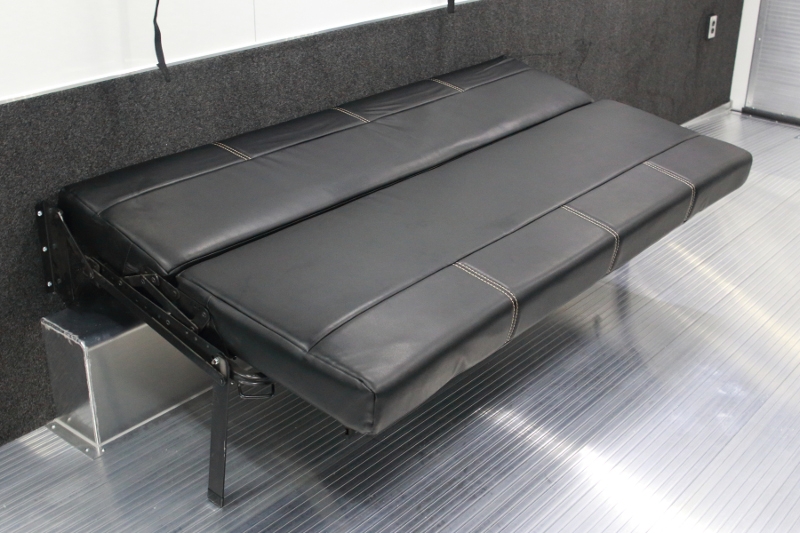

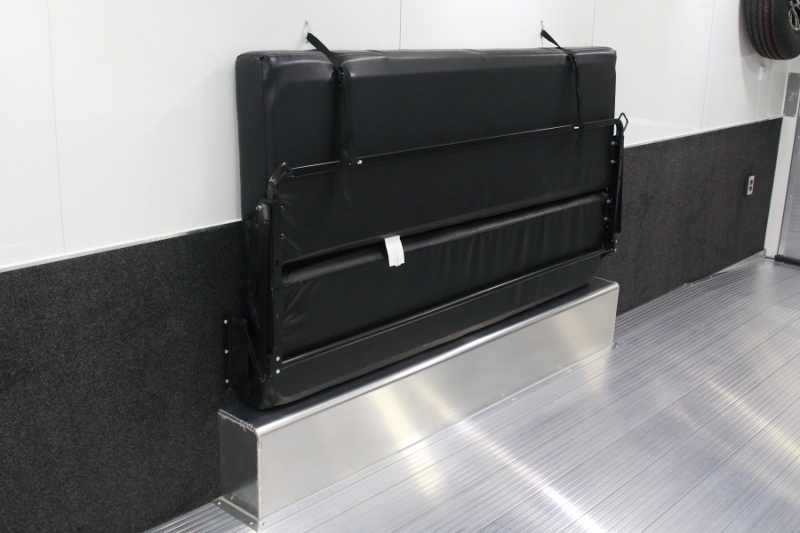

Add Rollover Sleeper Sofa – 84″ Long
